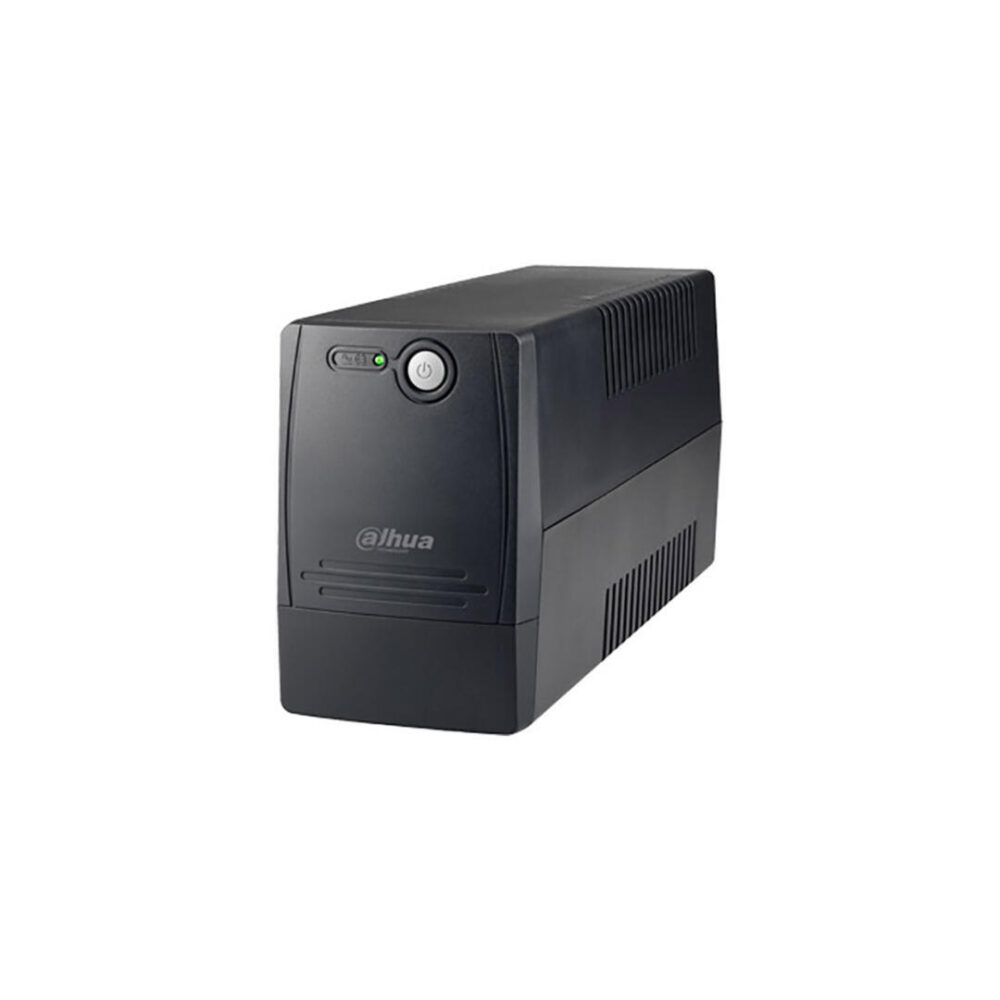

| Model | DH-PFM350-900 | ||||
| Plug type | European | British | Australian | Indian | North American |
| Capacity | 1500VA/900W | ||||
| Input | |||||
| Rated voltage | 220Vac~240Vac | 110Vac~120Vac | |||
| Voltage range | 140Vac~290Vac | 81Vac~145Vac | |||
| Rated frequency range | 50Hz or 60Hz | ||||
| Power factor | 0.6 | ||||
| Output | |||||
| Voltage | 220/230/240 VAC | 110/120 VAC | |||
| AC Voltage Regulation (Batt. Mode) | ±10% | ||||
| Frequency Range (Batt. Mode) | 50Hz or60Hz±1Hz | ||||
| Transfer Time | 2-6ms | ||||
| Waveform (Batt. Mode) | Simulated sinewave | ||||
| Battery | |||||
| Battery type & number | 12 V/9 Ah x 2 | ||||
| Typical recharge time | 4 hours recover to 90% capacity | ||||
| Charging voltage | 27.4V±1% | ||||
| Indicators | |||||
| Battery mode | Green lighting | ||||
| AC mode | Green lighting | ||||
| Alarm | |||||
| Battery mode | Sounding every 10 seconds | ||||
| Low battery | Sounding every second | ||||
| Overload | Sounding every 0.5 second | ||||
| Fault | Continuously sounding | ||||
| Protection | |||||
| Full protection | Overload, discharge and overcharge protection | ||||
| Environmental | |||||
| Operating temperature | 0°C ~ +40°C (+32°F ~ +104°F) | ||||
| Operating humidity | 0~90% RH(non-condensing) | ||||
| Altitude range | <1000m(3280.84ft) | ||||
| Construction | |||||
| Color | Black | ||||
| Noise level | <40dB | ||||
| Dimensions | 320mmx130mmx182mm(15.6"x5.12"x7.17") | ||||
| Weight | 10.4kg(22.93lb) | ||||
