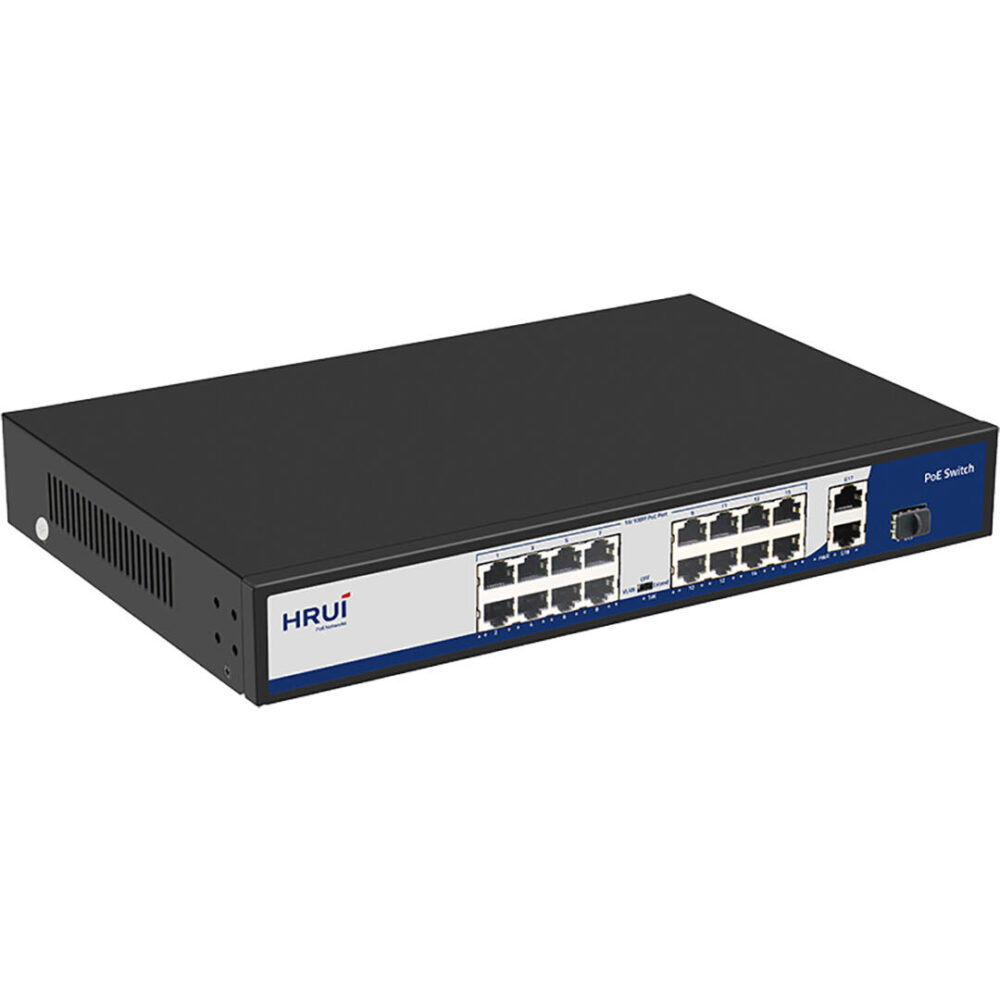

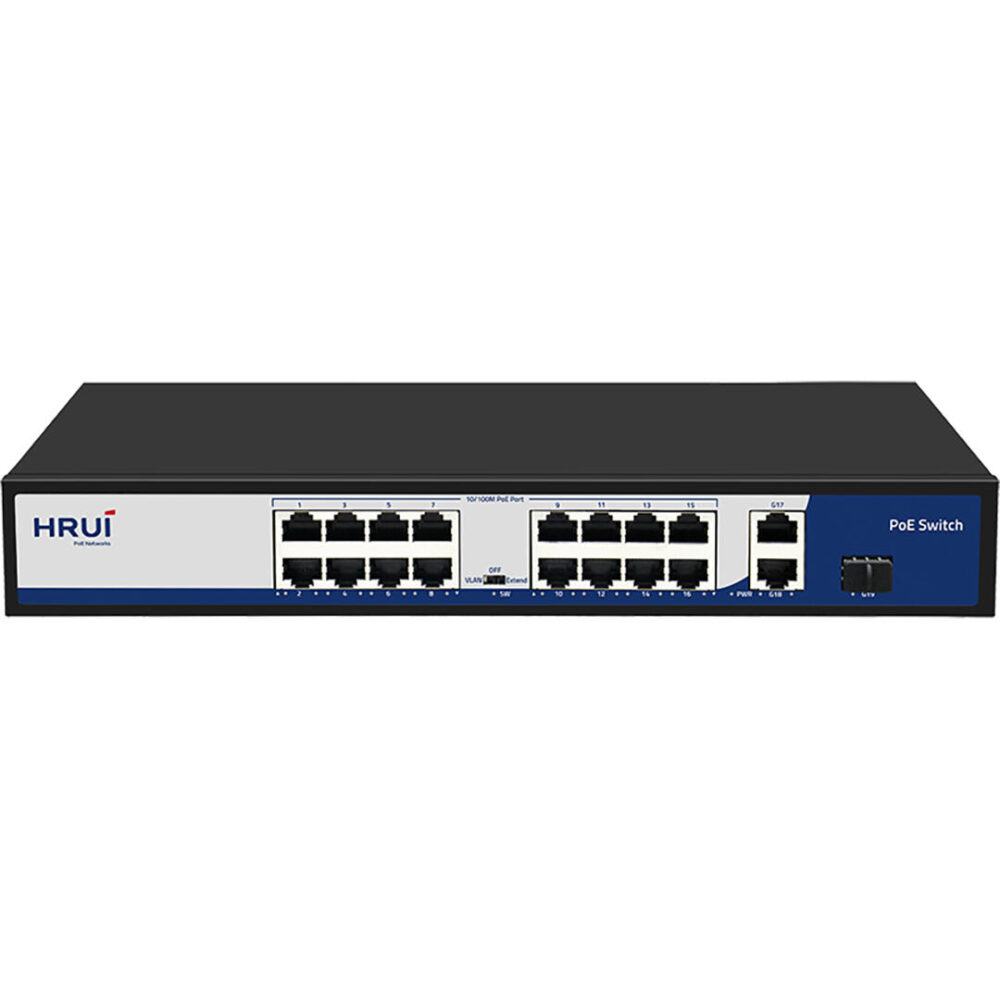

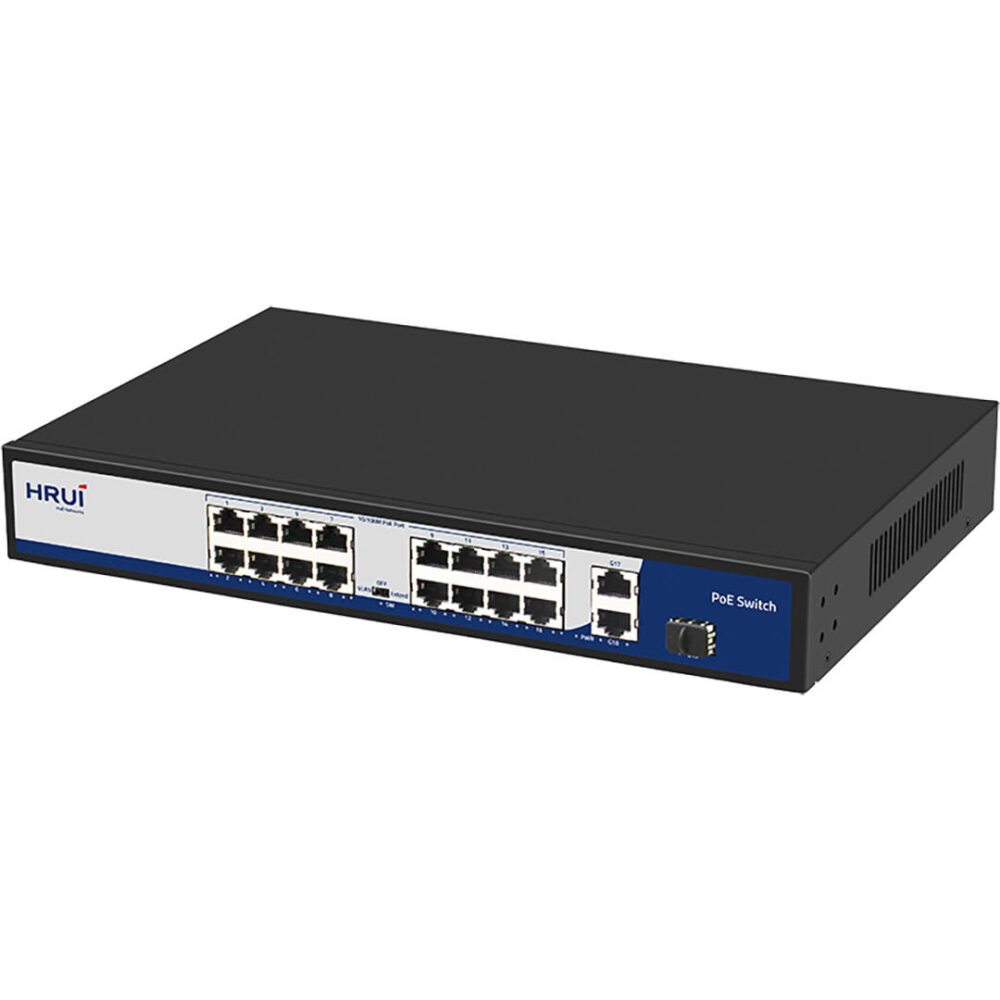

سوئیچ PoE اچ ار یو ای HRUI HR901-AF-1621GS-200

– سوئیچ 16 پورت 10/100M PoEو 2 پورت Uplink گیگ و یک پورت SFP گیگ
– سوئیچ PoE
– خروجی 200 وات
– 30 ماه وارانتی بی قید و شرط
– ایران کد 2233120766280013

Specification

I/O Interface

Power

Input: AC 100-240V, 50/60Hz

Ethernet

16 Port 10/100M PoE

2 Port 1000M Ethernet Uplink

1 port SFP 1000M Uplink

Performance

Switching Capacity

9.2 Gbps

Throughput

6.844Mpps

Packet Buffer

1.5Mb

MAC Address

2K

Jumbo Frame

9216bytes

Transfer Mode

Store and forward

MTBF

100000 hours

Standard

Network protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab (1000Base-TX)

IEEE802.3z(1000Base-FX)

IEEE802.3x (Flow control)

PoE Protocol

IEEE802.3af (15.4W)

IEEE802.3at (30W)

Industry Standard

EMI:  FCC Part 15 CISPR (EN55032) class A

EMS:  EN61000-4-2 (ESD), EN61000-4-4 (EFT)

Shock:  IEC 60068-2-27

Free Fall:  IEC 60068-2-32

Vibration:  IEC 60068-2-6

Network Medium

10Base-T:  Cat3, 4, 5 or above UTP(≤100m)

100Base-TX :  Cat5  or above UTP(≤100m)

1000Base-TX :  Cat5  or above UTP(≤100m)

Protection

Security Certificae

CE, FCC, RoHS

Environment

Working Environment

Working Temperature: -10~50°C

Storage Temperature: -40~85°C

Working Humidity : 10%~90%non-condensing

Storage Temperature: 5%~90%non-condensing

Working Height: Maximum 10,000 feet

Storage heigh: Maximum 10,000 feet

Indication

LED Indicators

PWR(power supply)SW(DIP)1-19 Green(Link&Data)

DIP Switch

VLAN: Port isolation mode. In this mode, the PoE ports (1-16) of the switch cannot communicate with each other, and can only communicate with the UP-link port.

OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M/100M adaptive;

Extend: Link extension mode, 1-16 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M

Mechanical

Structure Size

Product Dimension (L*W*H): 319*207*45mm

Package Dimension (L*W*H): 370*270*85mm

N.W: 1.8kg

G.W: 2.3kg

Packing Info

Carton MEAS: 440*285*390mm

Packing Qty: 5 units

Packing Weight: 12.5KG

Power Voltage

Input Voltage: AC 100-240 V

Power supply: 52V3.8A/52V5.76A

Package List

Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, Brackets 1 pair

دانلود

دانلود دیتاشیت HRUI HR901-AF-1621GS-200
