Technical Specification |
|
|
Model |

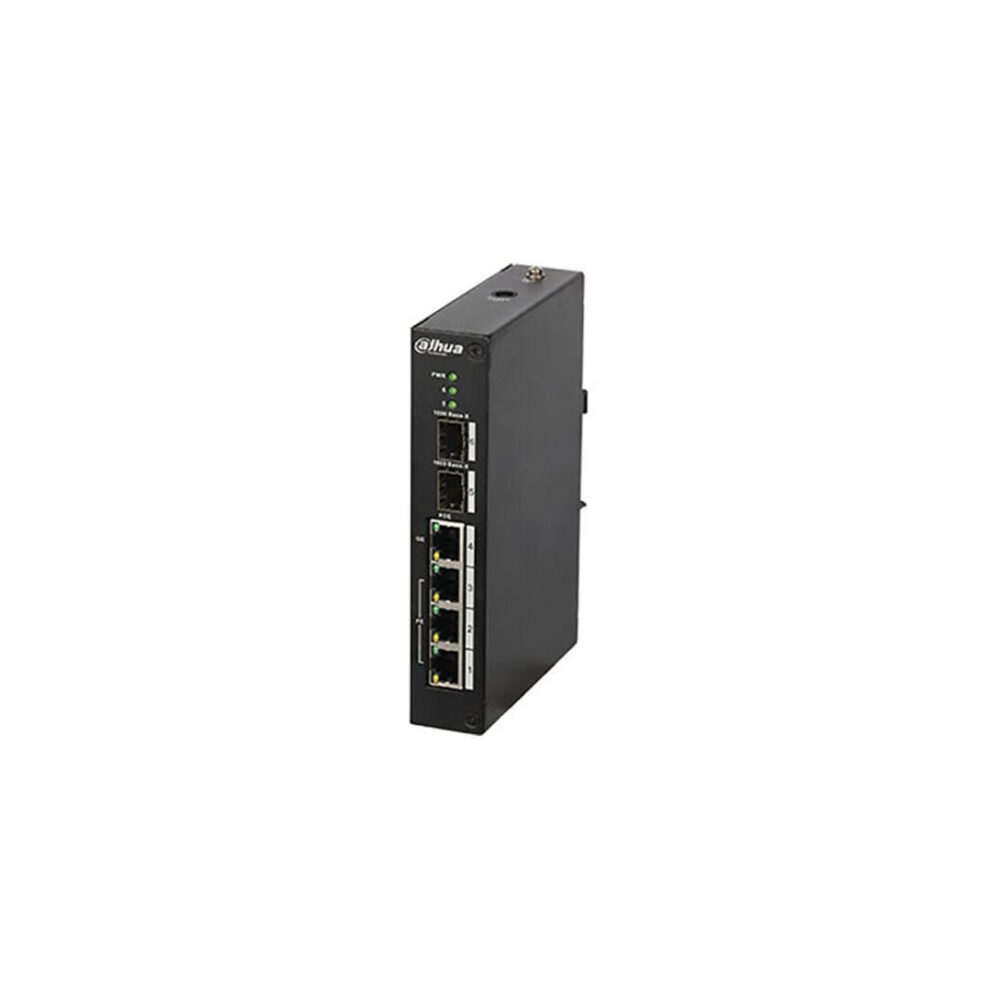

DH-PFS4206-4P-96 |
|
Ethernet Port |
2*1000 Base-X(SFP) 1*10/100/1000 Base-T(Hi-PoE/PoE+/PoE) 3*10/100 Base-T (PoE+/PoE) |
|
PoE Power Consumption |
Port1, 2, 3 ≤30W Port4≤60W Total≤96W |
|
PoE Protocol |
PoE(802.3af), PoE+(802.3at), Hi-PoE |
|
Switching Capacity |
6.8Gbps |
|
Packet Forwarding Rate |
4.91Mpps |
|
Packet Buffer Memory |
1Mb |
|
Application Humidity |
10%~90% |
|
Power |
DC48~57V |
|
Lightning Protection |
Common Mode 4KV Differential Mode 2KV |
|
Working Temperature |
-30°C~65°C |
|
Weight |
480g |
|
Dimension(W×D×H) |
150mm×100mm×30mm |
|
Service Characteristics |
|
|
System |
Username / password: admin/(empty) |
|
IP Address :192.168.1.110/24 |
|
|
PoE Budget |
96W |
|
MAC Table Size |
8K |
|
VLAN |
802.1Q Standard VLAN |
|
Port Mirroring |
Support many-to-one port mirroring |
|
Flow Control |
Support half-duplex based on back pressure type control |
|
Support full duplex based on PAUSE frame |
|
|
Network Management |
WEB, SNMP V1/V2C |
|
Ring Network |
Support private fast ring network, recovery time <=50ms |
|
Support Spanning Tree, STP/RSTP |
|
|
Support Loop Detection |
|
|
PoE Management |
Support PoE power consumption, PoE on/off of IPC configuration, power down when exceeding the value of overload power |
