General parameter

Product name

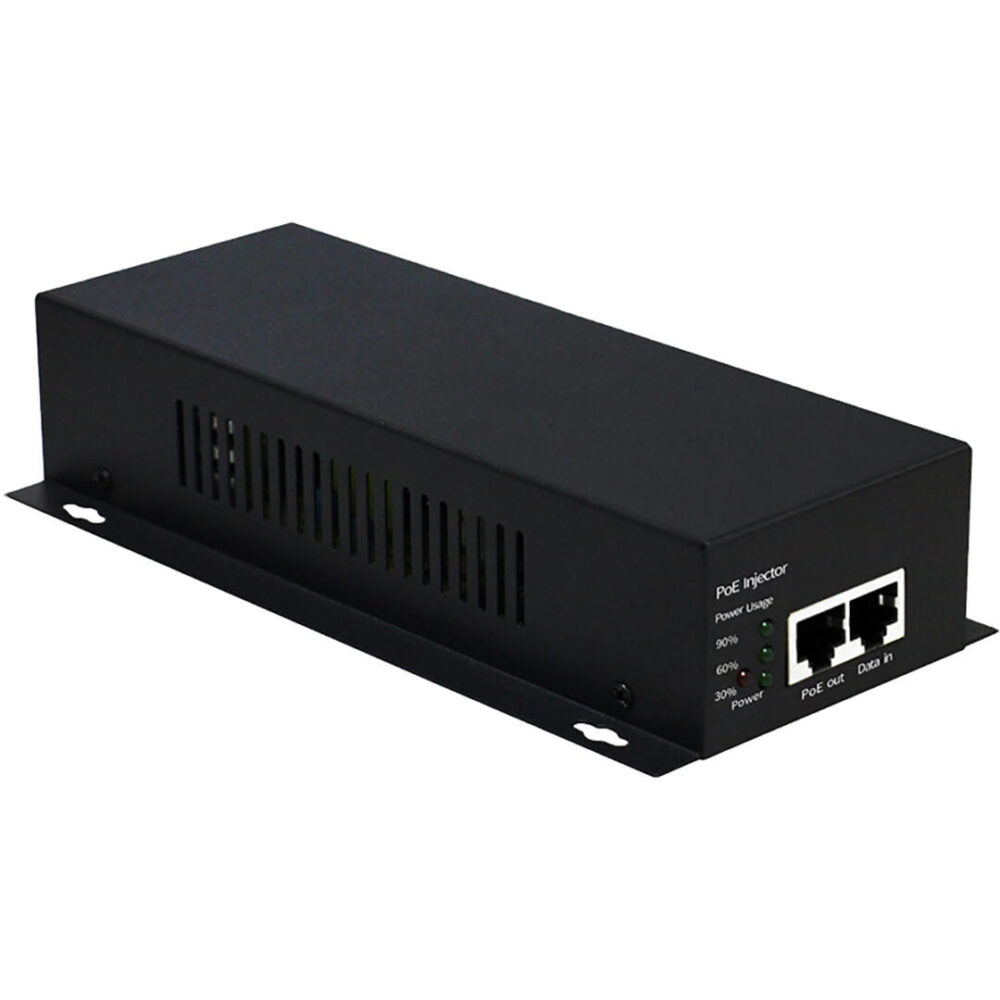

30W gigabit POE injector

Model

HR-ATG-N301

Connector Type

1* gigabit POE port + 1* gigabit Ethernet port

POE Parameters

POE Standard: IEEE802.3af /IEEE802.3at

Each port Max: 15.4W (IEEE 802.3af)

Each port Max: 30W (IEEE 802.3at)

POE port output: DC 52V

POE power supply core:1/2+；3/6- or 4/5+；7/8-

Network Media

10BASE-T: Cat5 UTP(≤250 m)

100BASE-TX: Cat5 or more UTP(≤100 m)

1000BASE-TX: Cat5 or more UTP(≤100 m)

LED indicator

PWR

Lighting: Powered

Un-Light: No Power

POE power

30%/60%90%

Lighting: Current power state
Un-Light: Power usage is below scale

Power Supply

Power input: AC 100-240 V working frequency: 50/60 Hz

Working power: 52V/0.92A

Working Environment

Operating Temperature: -20～50℃

Storage Temperature: -40～85℃

Humidity: 5%~95% (non-condensing)

Testing standard

EN61000-4-2 (ESD) Contact 8KV, Air 15KV
IEN61000-4-5 (Surge) Common mode 6KV, Differential mode 1KV
EN61000-4-3 (RS)
EN61000-4-6 (CS)

EN61000-4-4 (EFT)

FCC Part 15/ CISPR32 /EN55032: CLASS A

IEC 60068-2-27 Shock

IEC 60068-2-32 Free fall

IEC 60068-2-6  Vibration

Mechanical Structure

Shell protect grade: IP20

Installation: Wall mount

N.W: 0.4KG

G.W: 0.7KG (without power supply)

Product Dimension (L×W×H): 187 mm× 95mm×40 mm

Package Dimension (L×W×H): 254 mm× 190mm× 60mm

Package Contents

Certification

CE, FCC, CCC, RoHS

MTBF

100,000 hours

Warranty

3 years
