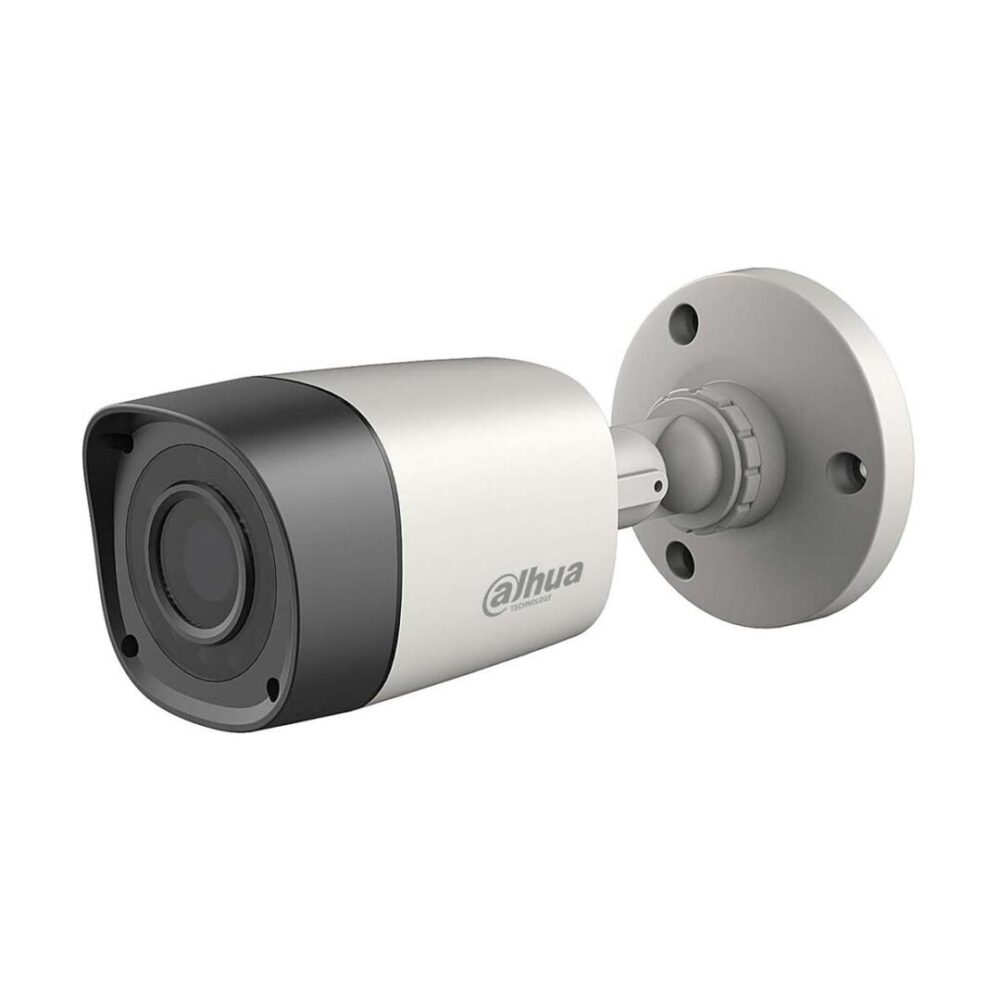

Model | DH-CA-FW181RP | DH-CA-FW181RN |
Camera | ||
Image Sensor | 1/3" HDIS | |
Effective Pixels | 960(H)×480(V) | |
Horizontal Resolution | 720TVL | |
Electronic Shutter | 1/50s~1/100,000s | 1/60s~1/100,000s |
Synchronization | Internal | |
Mini. Illumination | 0.02Lux@F1.2(AGC ON), 0Lux IR on | |
S/N Ratio | More than 65dB (AGC Off) | |
Video Output | 1Vp-p Composite Output (75Ω/BNC) | |
Camera Features | ||
Max. IR LEDs Length | 20m, Smart IR | |
Day/Night | Auto(ICR) / Color / B/W | |
Noise Reduction | 2D | |
Lens | ||
Focal Length | 6mm fixed lens (3.6mm optional) | |
Angle of View | H: 46.5º(70º) | |
Mount Type | M12 | |
General | ||
Power Supply | DC12V±10% | |
Power Consumption | Max 2.4W | |
Working Environment | -40°C~+60°C / Less than 90%RH (no condensation) | |
Ingress Protection | IP66 | |
Dimensions(W×D×H) | F70mm×154mm | |
Weight | 0.15kg |
