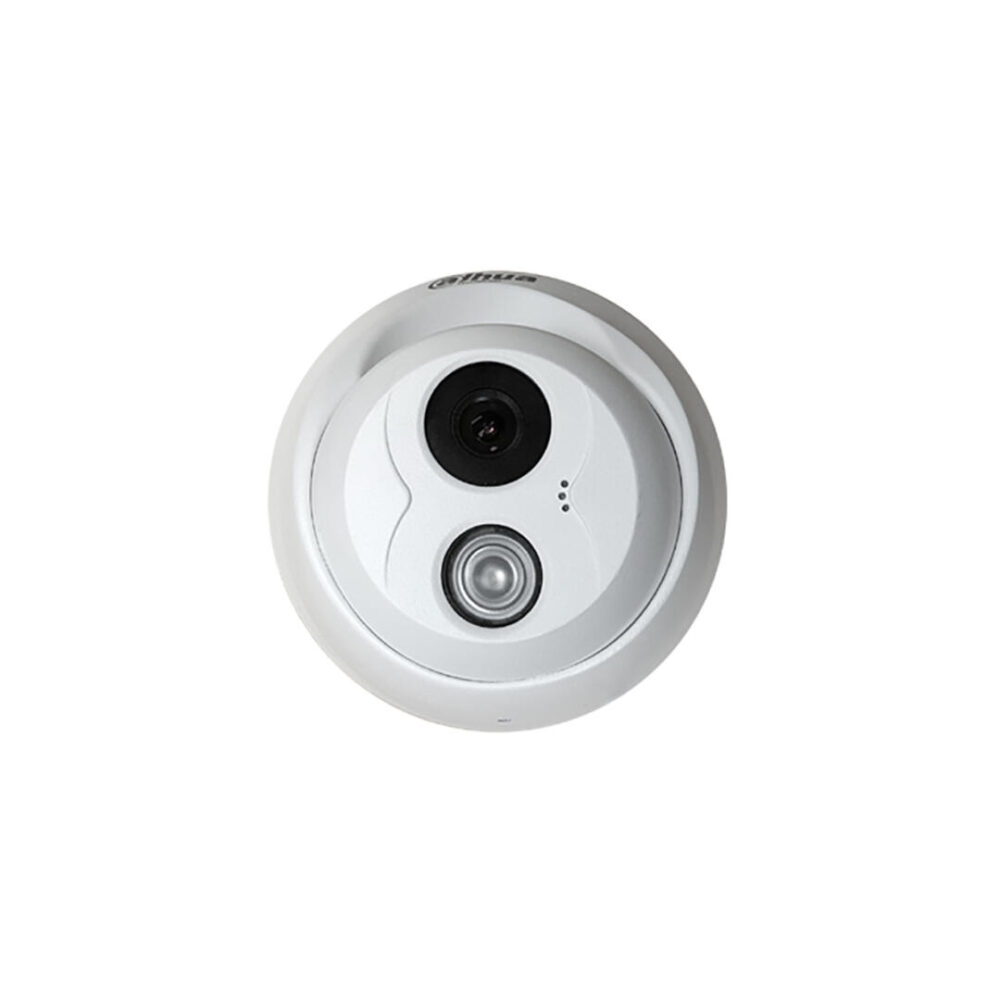

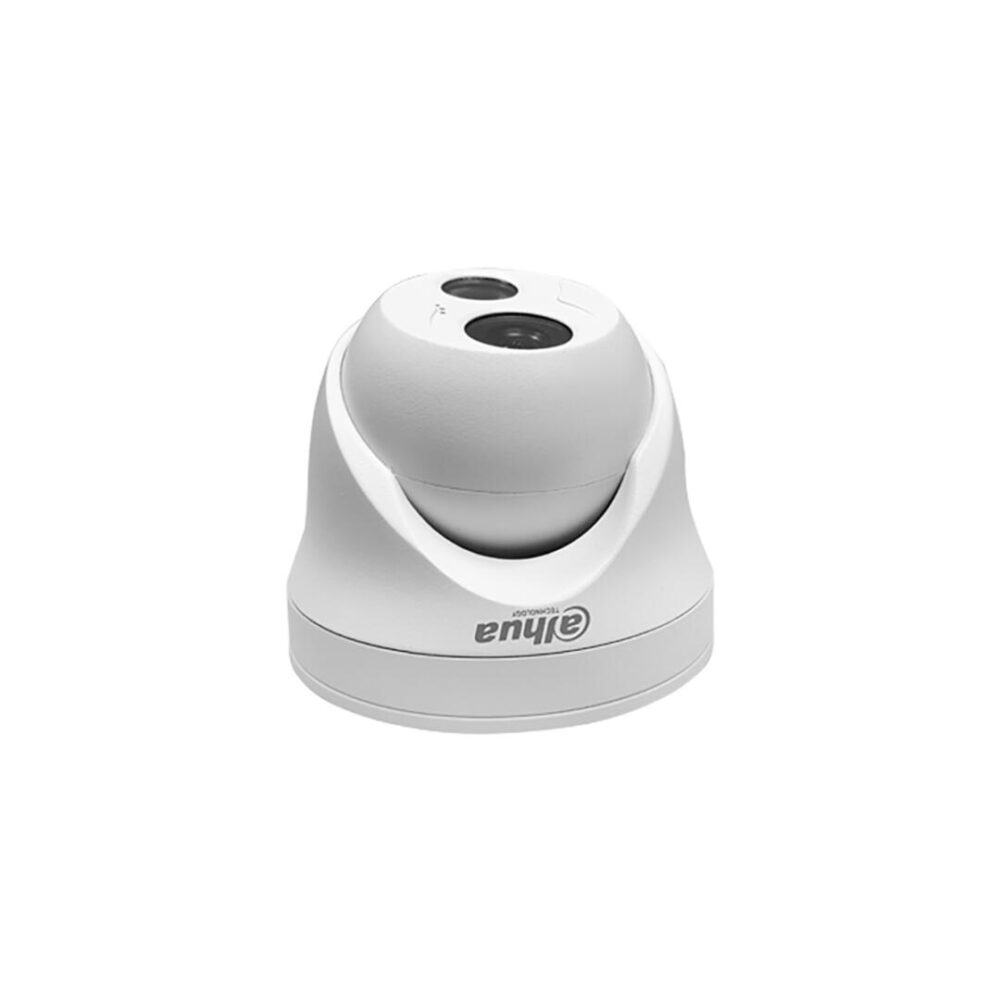

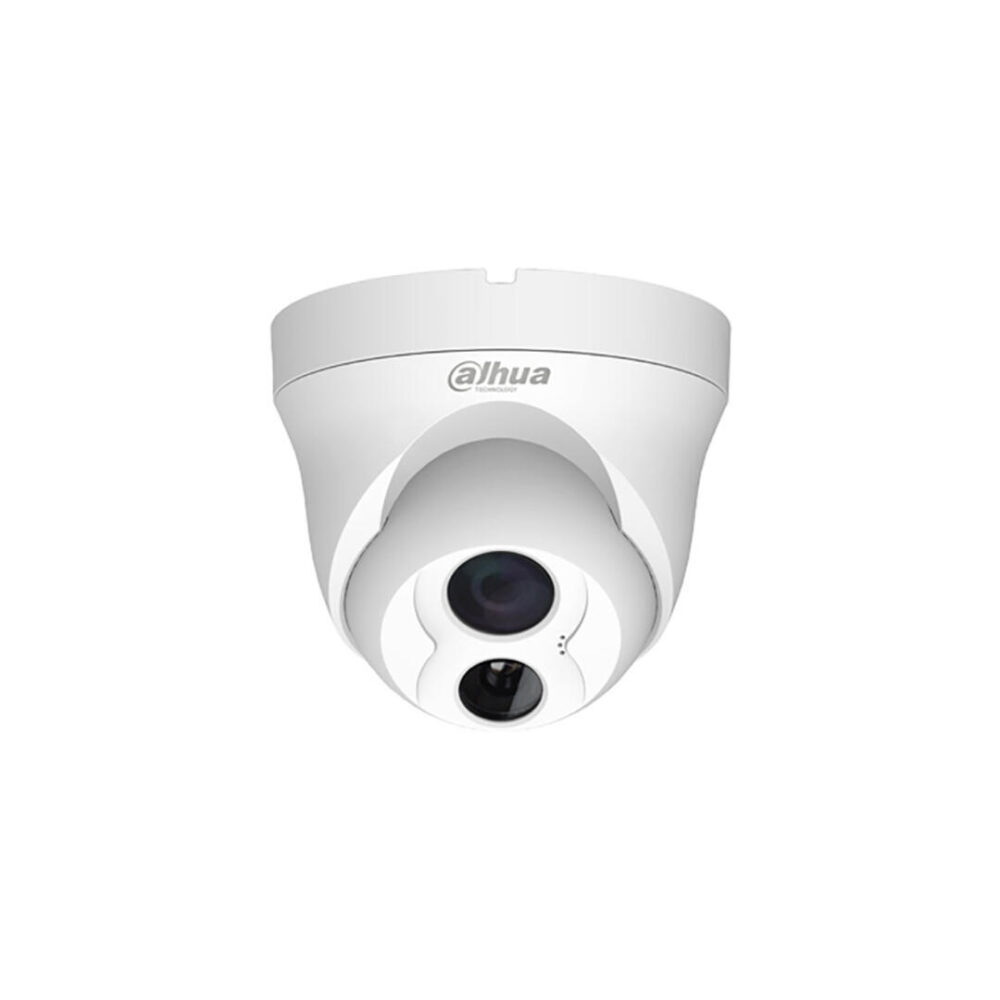

Model | DH-IPC-HDW4300C | |
Camera | ||
Image Sensor | 1/3” 3Megapixel progressive scan CMOS | |
Effective Pixels | 2052(H)x1536(V) | |
Scanning System | Progressive | |
Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/10000s | |
Min. Illumination | 0. 01Lux/F1.2 (Color), 0.005Lux/F1.2(B/W);0Lux/F1.2(IR on) | |
S/N Ratio | More than 50dB | |
Video Output | N/A | |
Camera Features | ||
Max. IR LEDs Length | 30m | |
Day/Night | Auto(ICR)/Color/B/W | |
Backlight Compensation | BLC / HLC / DWDR | |
White Balance | Auto | |
Gain Control | Auto/Manual | |
Noise Reduction | 3D | |
Privacy Masking | Up to 4 areas | |
Lens | ||
Focal Length | 3.6mm (2.8mm, 6mm, 8mm optional) | |
Max Aperture | F1.8 (F2.0, F1.6/F1.6) | |
Focus Control | Manual | |
Angle of View | H: 72.5° (90°, 44°, 33.2°) | |
Lens Type | Fixed lens | |
Mount Type | Board-in Type | |
Video | ||
Compression | H.264 / MJPEG | |
Resolution | 3M(2048´1536)/ 1080P(1920×1080)/ 720P(1280×720)/ D1(704×576/704×480)/ CIF(352×288/352×240) |
|
Frame Rate | Main Stream | 3M(1~20fps)/1080P/720P(1 ~ 25/30fps) |
Sub Stream | D1(1~20fps)/CIF(1 ~ 25/30fps) | |
Bit Rate | H.264: 56K ~ 8192Kbps | |
Audio | ||
Compression | G.711a/G.711u/PCM | |
Interface | Built-in MIC | |
Network | ||
Ethernet | RJ-45 (10/100Base-T) | |
Wi-Fi | N/A | |
Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |
ONVIF | ONVIF Profile S | |
Max. User Access | 20 users | |
Smart Phone | iPhone, iPad, Android, Windows Phone | |
Auxiliary Interface | ||
Memory Slot | N/A | |
RS485 | N/A | |
Alarm | N/A | |
PIR Sensor Range | N/A | |
General | ||
Power Supply | DC12V, PoE (802.3af) | |
Power Consumption | Max 4.5W | |
Working Environment | -20°C~+60°C, Less than 95%RH | |
Ingress Protection | IP66 | |
Vandal Resistance | – | |
Dimensions | Φ107.9mm×84.1mm | |
Weight | 0.4kg |
