Model | DH-NVR7032 | DH-NVR7064 |
System | ||
Main Processor | Dual-core embedded processor | |
Operating System | Embedded LINUX | |
Video & Audio | ||
IP Camera Input | 32 channel | 64 channel |
Two-way Talk | 1 channel Input, 1 channel Output, BNC | |
Display | ||
Interface | 1 HDMI, 1 VGA, 1TV | |
Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 | |
Display Split | 1/4/8/9/16/25/36 | 1/4/8/9/16/25/36 |
OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
Recording | ||
Compression | H.264/MJPEG | |
Resolution | 5Mp(2560× 1920)/3Mp(2048× 1536)/1080P(1920× 1080)/720P(1280× 720)/D1(704× 576/704× 480) & etc. | |
Record Rate | 192Mbps | |
Bit Rate | 48~ 8192kbps | |
Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop | |
Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |
Video Detection & Alarm | ||
Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips | |
Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |
Alarm Input | 16 channel | |
Relay Output | 6 channel | |
Playback & Backup | ||
Sync Playback | 1/4/9/16 | |
Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | |
Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |
Backup Mode | USB Device/eSATA Device/Internal SATA burner/Network | |
Network | ||
Ethernet | 2 RJ-45 ports (10/100/1000Mbps) | |
Network Function | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) | |
Max. User Access | 128 users | |
Smart Phone | iPhone, iPad, Android, Windows Phone | |
Storage | ||
Internal HDD | 16 SATA ports up to 64TB | |
External HDD | 1 eSATA port | |
Auxiliary Interface | ||
USB | 4 ports (2 Rear), USB2.0 | |
RS232 | 1 port, For PC communication & Keyboard | |
RS485 | 1 port, For PTZ control | |
General | ||
Power Supply | AC 100V~240V, 50/60 Hz | |
Power Consumption | NVR: 75W (without HDD) | |
Working Environment | -10°C~+55°C / 10%~90%RH / 86~106kpa | |
Dimension (W×D×H) |
3U, 448mm×490mm×133mm | |
Weight | 10.5kg~11.5kg (without HDD) |

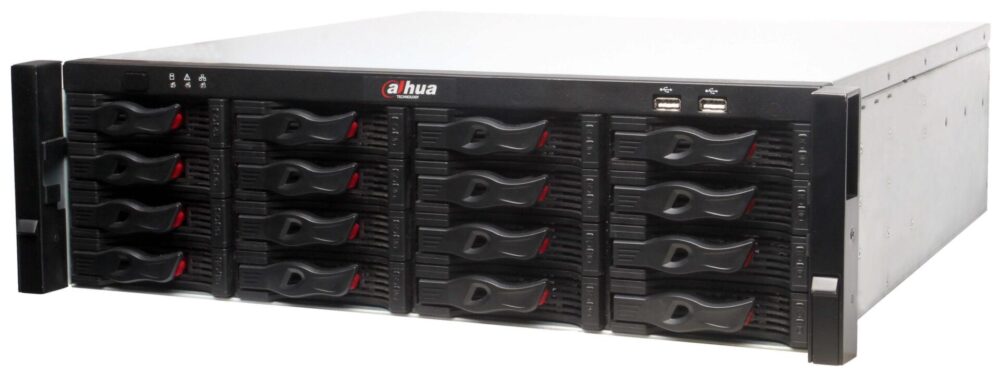

دستگاه ضبط تحت شبکه NVR داهوا DH-NVR7064
– پردازشگر دو هسته ای Dual-core Embedded Processor
– پیش نمایش با کیفیت 1080P
– فرمت تصویری H.264/MJPEG dual codec decoding
– پهنای باند ورودی 256Mbps
– به همراه پورت eSATA تا 16TB
– دارای 4 پورت USB 2.0
– پشتیبانی از RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
