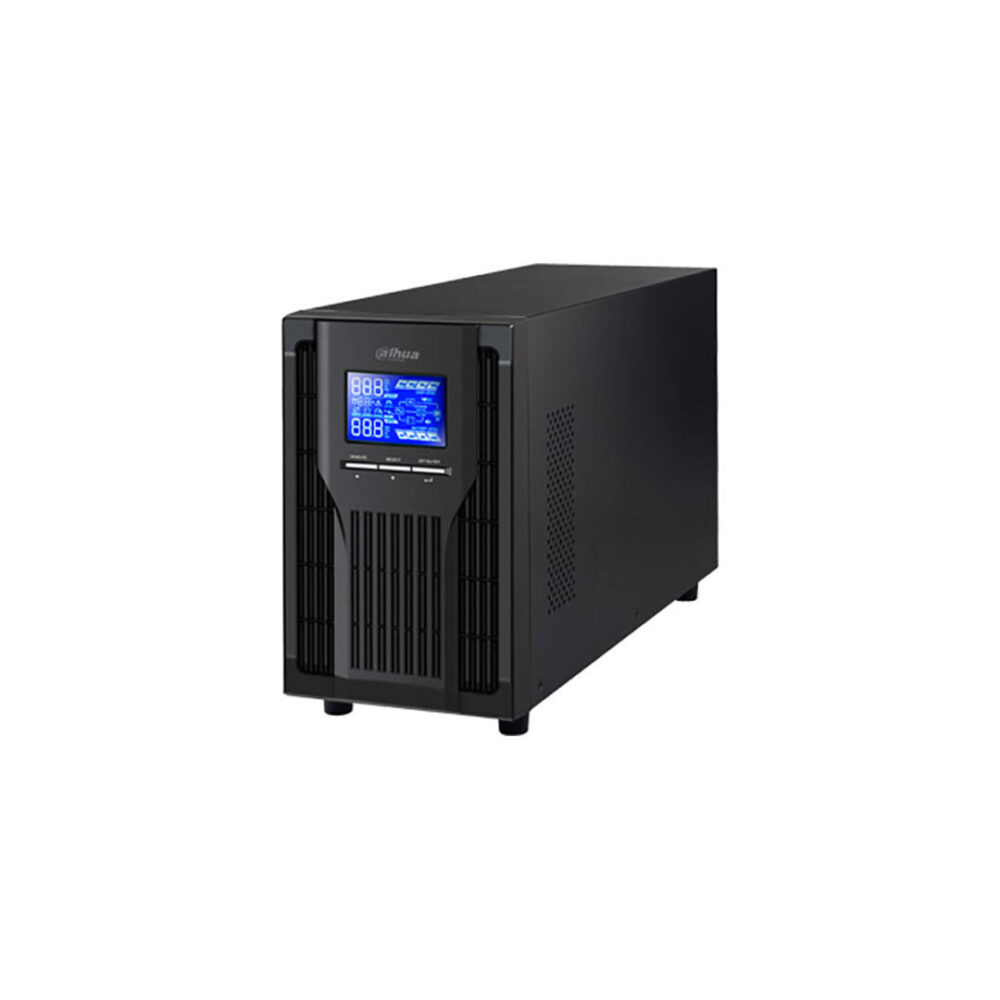

| Model | DH-PFM351-900 | ||||
| Plug type | European | British | Australian | Indian | North American |
| Capacity | 1000VA/900W | ||||
| Input | |||||
| Rated voltage | 220Vac~240Vac | 110Vac~120Vac | |||
| Voltage range | 110Vac~300Vac | 55Vac~145Vac | |||
| Rated frequency range | 40Hz~70Hz | ||||
| Power factor | 0.9 | ||||
| Output | |||||
| Voltage | 200/208/220/230/240 VAC | 100/110/115/120/127 VAC | |||
| AC Voltage Regulation (Batt. Mode) | ±1% | ||||
| Frequency Range (Batt. Mode) | 50Hz or 60Hz±0.5% | ||||
| Transfer Time | 0 | ||||
| Waveform (Batt. Mode) | Simulated sinewave | ||||
| Battery | |||||
| Battery type & number | 12 V/9 Ah x 2 | ||||
| Typical recharge time | 4 hours recover to 90% capacity | ||||
| Charging voltage | 27.4V±1% | ||||
| Indicators | |||||
| LCD | Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators | ||||
| Alarm | |||||
| Battery mode | Sounding every 10 seconds | ||||
| Low battery | Sounding every second | ||||
| Overload | Sounding every 0.5 second | ||||
| Fault | Continuously sounding | ||||
| Protection | |||||
| Full protection | Overload, discharge and overcharge protection | ||||
| Environmental | |||||
| Operating temperature | 0°C ~ +40°C (+32°F ~ +104°F) | ||||
| Operating humidity | 20~90% RH(non-condensing) | ||||
| Altitude range | <1000m(3280.84ft) | ||||
| Construction | |||||
| Color | Black | ||||
| Noise level | <50dB | ||||
| Dimensions | 282mmx145mmx220mm(11.1"x5.71"x8.66") | ||||
| Weight | 9.8kg(21.61lb) | ||||
