Specification

Connector Type

1* Gigabit PoE port + 1* Gigabit Ethernet port

PoE Parameters

PoE Standard: IEEE802.3af /IEEE802.3at/IEEE802.3bt

Each port Max: 15.4W (IEEE 802.3af)

Each port Max: 30W (IEEE 802.3at)

Each port Max: 90W (IEEE 802.3bt)

PoE port output:  DC 52V

PoE power supply core: 1/2- 3/6+; 4/5+ 7/8-

Network Media

10BASE-T: Cat3, 4, 5or more UTP(≤100 m)

100BASE-TX: Cat5 or more UTP(≤100 m)

1000BASE-TX: Cat5 or more UTP(≤100 m)

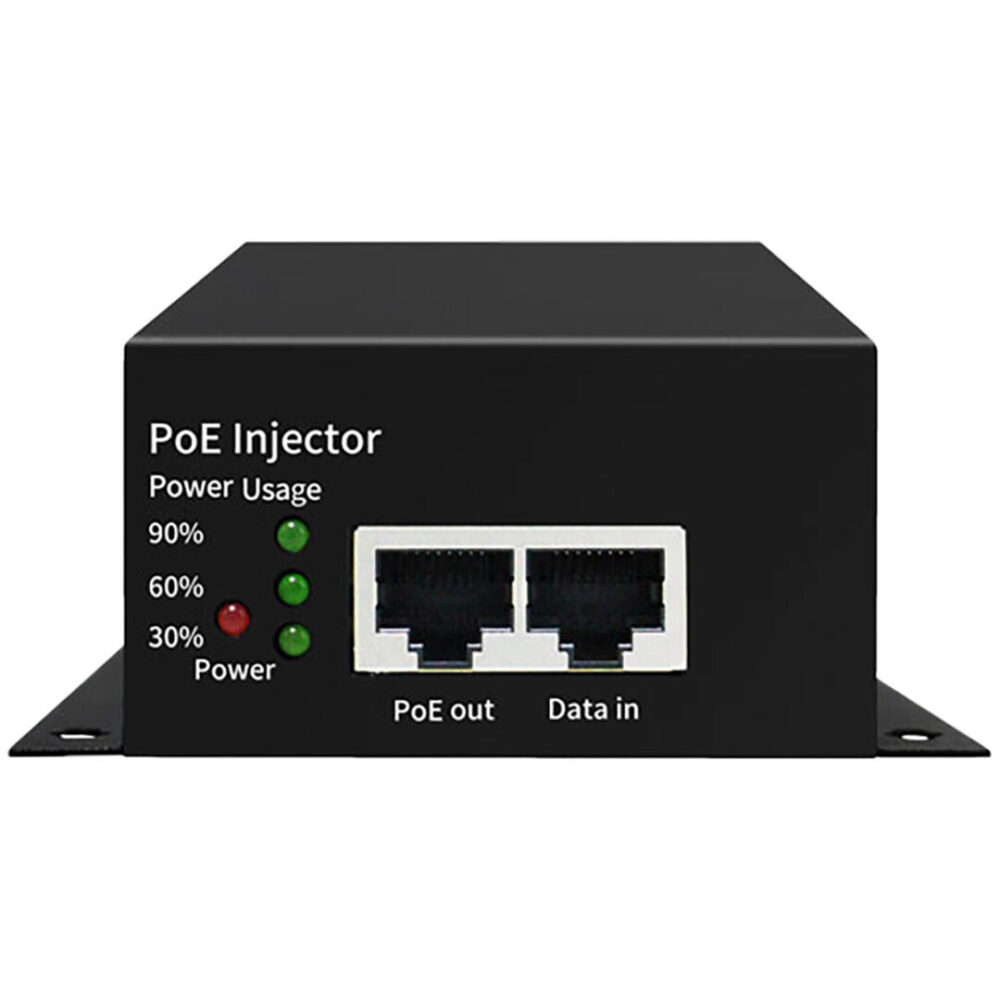

LED indicator

PWR

Lighting: Powered

Un-Light: No Power

PoE power

Lighting: Current power state

30%, 60%, 90%

Un-Light: Power usage is below scale

Power Supply

Power input: AC 100-240V    working frequency: 50/60Hz

Working power: 52V/1.85A

Working Environment

Operating Temperature: -20～50℃

Storage Temperature: -40～85℃

Humidity: 5%~95 % ( non-condensing)

Testing standard

EN61000-4-2 (ESD)

IEN61000-4-5 (Surge)

EN61000-4-3 (RS)

EN61000-4-6 (CS)

EN61000-4-4 (EFT)

FCC Part 15/ CISPR32 /EN55032:  CLASS A

IEC 60068-2-27 Shock

IEC 60068-2-32 Free fall

IEC 60068-2-6 Vibration

Mechanical Structure

Shell protect grade:  IP20

Installation:  Wall mount

Product Dimension (L×W×H): 187mm×95mm×40mm

Package Dimension (L×W×H): 245mm×190mm×60mm

Package Contents

1. 90W Gigabit PoE injector: 1pcs

2. User Guide: 1pcs

3. Certificate .warranty card: 1pcs

Certification

CE, FCC, CCC, RoHS

MTBF

100, 000 hours
