General Performance Indicator

  Product Name

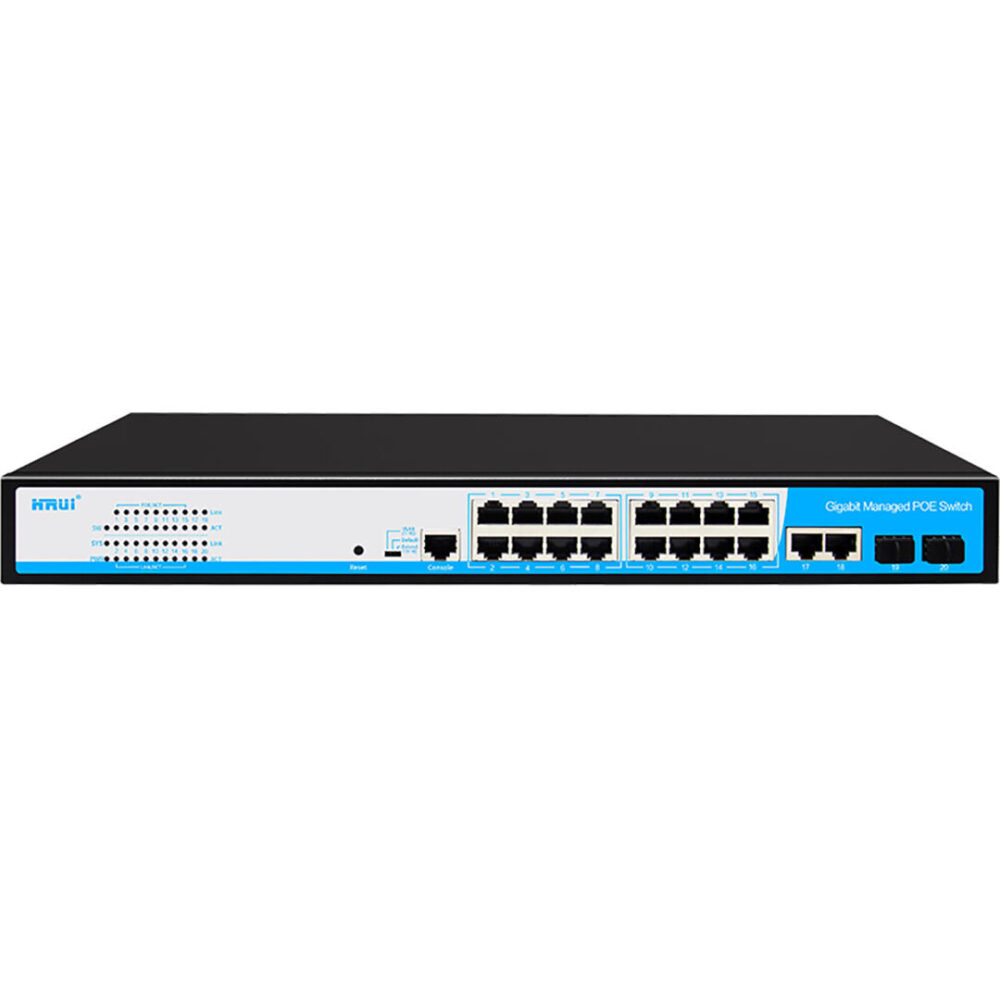

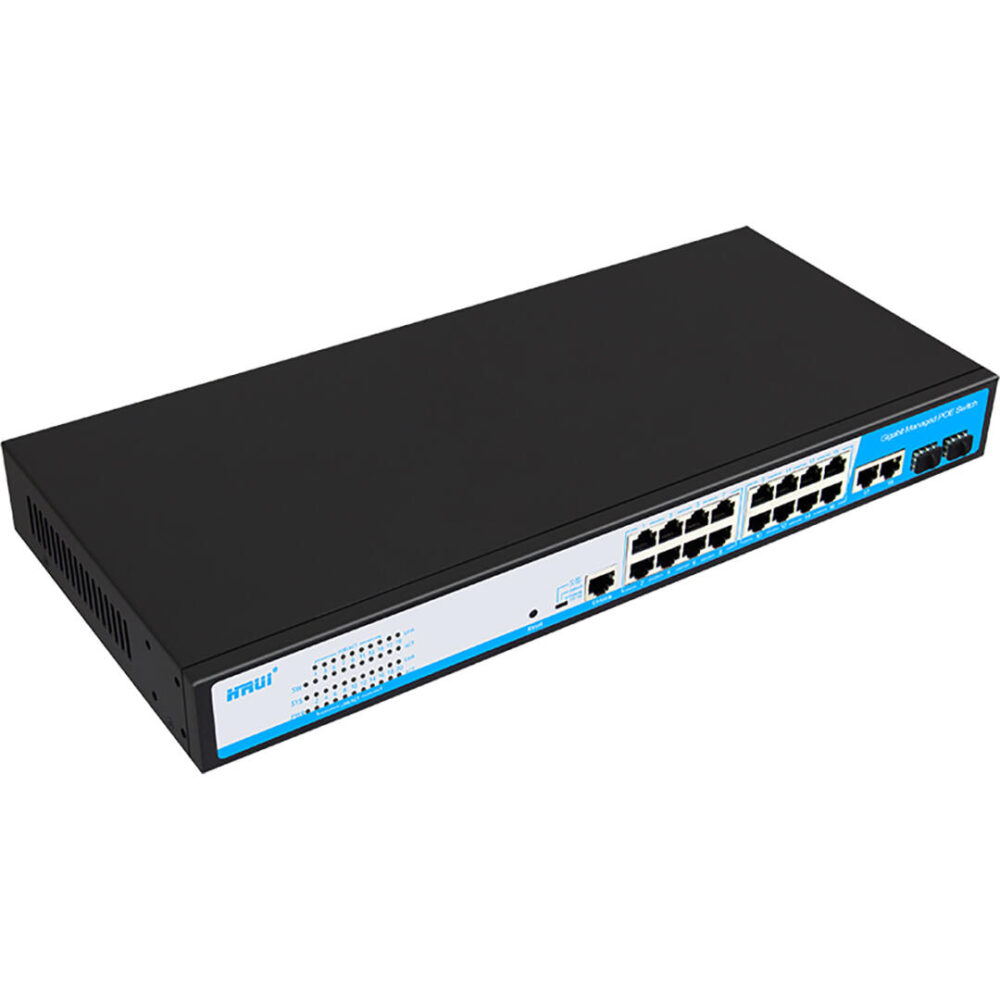

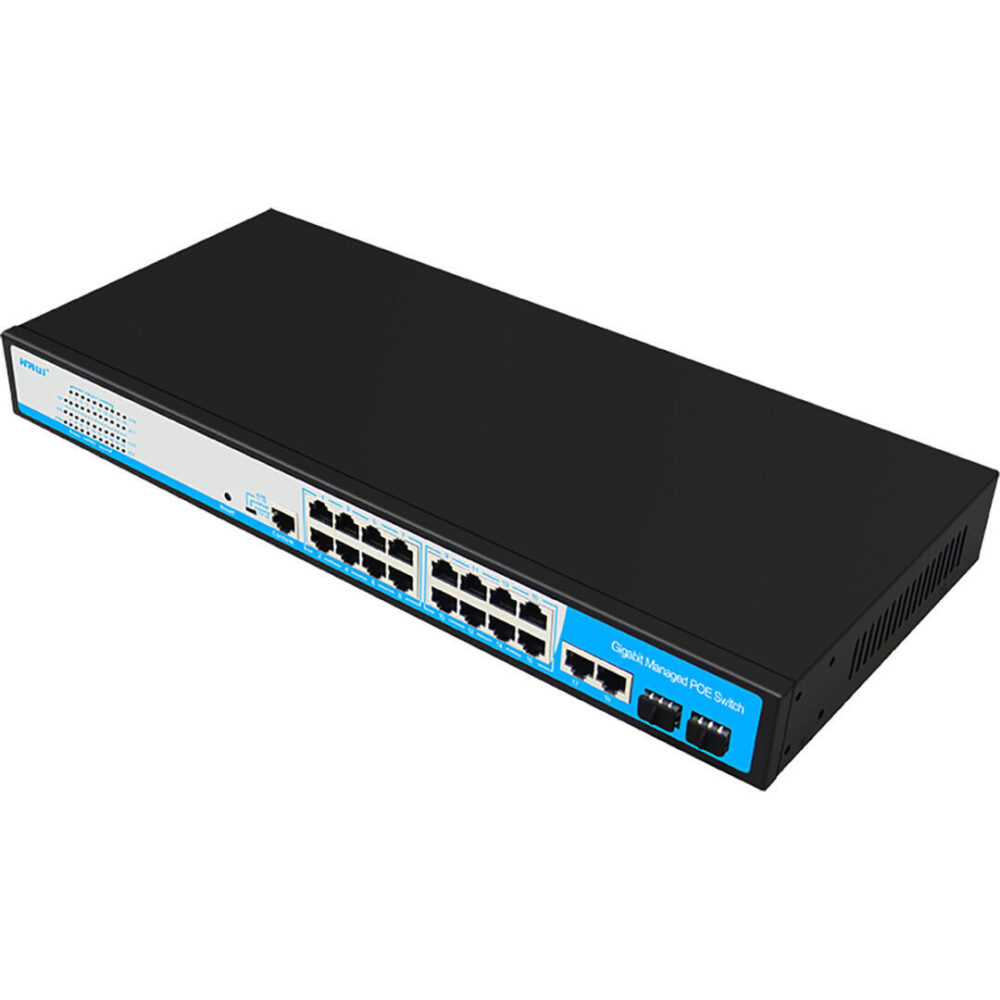

  20 Port Gigabit Managed POE Switch

HR-AFGM–1622S

  Interface

16*10/100/1000M  PoE  Ports  +  2*10/100/1000M  Ethernet  Uplink  Ports  + 2*Gigabit SFP Uplink Ports + 1*Console Port

  Network Protocols

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3x

IEEE 802.3z

IEEE 802.1q

IEEE 802.1p

  PoE Parameters

PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w)

PoE compatibility: IEEE 802.3af/at adaptive

  POE port output: DC52V

Power Pin Assignment: Power over spare pairs 1/2(+) and 3/6 (-)

General Mode 6KV, Differential Mode 4KV, ESD 15KV.

  Network Transmission Medium

10BASE-T: Cat3, 4, 5 UTP (≤ 100 m)

  100BASE-TX: UTP (≤100 m) above Cat5

  1000BASE-TX: UTP (≤100 m) above Cat5

  Optical

Multimode fiber: 1310nm, 2Km

  Single mode fiber: 1310nm, 20/40 Km

                                1550nm, 60/80/100/120Km

  Reset

  Short press restart, long press 5 seconds to restore factory Settings

  DIP Function

  Default: all ports can communicate with each other, PoE Watchdog is closed

  Extend: 13–16 Port: Supports 250m link extension at a rate of 10M, other ports normal, PoE Watchdog open (hardware takes precedence over software).

  LED Indicator

PWR

Lighting：Powered

Un–Light：No Power

SYS

Flashing: System Start–up

  Lighting: System Running

  SW

Lighting: LVAN Un–Light: Extend

Flashing: Default

POE/ACT

Lighting：Powered

Un–Light：No Power

  Link/ACT

Lighting: Link connection

  Flashing: Data transmission

  Un–Light: Link disconnect

  Power Supply

Machine input voltage: AC110–264V; Output: DC52V5.76A, Total power: 300W

  Physical Dimension

  Product size (L×W×H): 410mm×185mm×44.5mm

  Package size (L×W×H): 468mm×274mm×81mm

  Product weight: 2.3kg

Package weight: 2.9 kg

  Working Environment

Operating Temperature:–20° ~ 55 ° C; Storage Temperature: –40 ° ~ 85 ° C;

Operating Humidity: 10% ~ 95%, non–condensing

Working height: up to 10,000 feet (3,000 meters) Storage height: up to 10,000 feet (3,000 meters)

  Certification

  CE, FCC,ROHS,3C

  MTBF

  100,000 hours

  Package Contents

1. Switch: 1 set

  2. Instruction manual: 1

  3. Certificate of conformity: 1

  4. Warranty card: 1

  5. AC power cord 1

  6. A pair of hanging ears

  Warranty

  3 years warranty

  Technical Indicators

40Gbps (non–blocking)

Packet Forwarding rate

29.76Mpps

Packet Buffer Memory

4M

Memory Capacity

128MB

Flash Capacity

16MB

Jumbo frame

9.6Kbytes

VLANs

4096

MAC

8K

Forwarding Mode

Store-And–Forward

  Layer 2 Software Function

  Port Management

Enable/Disable Port

Speed、Duplex、MTU Setting

Flow–control

Port Information Check

  Port Mirroring

Supports both side–way port mirroring

Port Speed Limit

Supports port–based input / output bandwidth management

  Port Isolation

Support the downlink port isolation, and can communicate with the uplink port

Storm Suppression

Supports unknown unicast, multicast, unknown multicast, broadcast type storm suppression

Storm suppression based on bandwidth regulation and storm filtering

  Link Aggregation

Support static manual aggregation

  Support LACP dynamic aggregation

  VLAN

Access

Trunk

Hybrid

Support port, protocol, MAC-based VLAN partitioning

Support GVRP dynamic VLAN registration

Voice   VLAN

  MAC

Support static addition, deletion

MAC address learning limit

Support dynamic aging time setting

  Spanning tree

Support STP spanning tree protocol

  Supports RSTP Rapid Spanning Tree Protocol

  Supports MSTP Rapid Spanning Tree Protocol

  Multicast

Support static addition, deletion

IGMP-snooping

Support MLD-Snooping

Support v1/2/3 dynamic multicast monitor

  DDM

Support SFP/SFP+DDM

Extended Function

ACL

Based on source MAC, destination MAC, protocol type, source IP, destination

IP, L4 port

  Qos

Based on 802.1p (COS) classification

Based on DSCP classification

Classification based on source IP, destination IP, and port number

Support SP, WRR scheduling strategy

Support flow rate limit CAR

LLDP

Support LLDP link discovery protocol

User settings

Add/delete users

Log

User login, operation, status, events

  Anti–attack

DOS defense

Support CPU protection and limits the rate of sending cpu packets

ARP binding (IP, MAC, PORT binding)

Certification

Support 802.1x port authentication

Support AAA certification

Network diagnosis

Support ping、telnet、trace

System Management

Device reset, configuration save/restore, upgrade management, time setting, etc.

Management function

  CLI

Support serial port command line management

  SSH

Support SSHv1/2 remote management

  TELNET

Support telnet remote management

  WEB

Support Layer 2 settings, Layer 2 and Layer 3 monitor

  SNMP

SNMP V1/V2/V3

Support trap：ColdStart、WarmStart、LinkDown、LinkUp

RMON

Support RMON v1

  POE

Support PoE power supply

  Other functions

Support DHCP   Snooping、Option82

Support dynamic ARP detection

Support TACACS+ certification

Support DNS certification

Support port security settings

Support MVR protocol

Support cable detection VCT function

Support UDLD protocol
