Description

Specification

Model

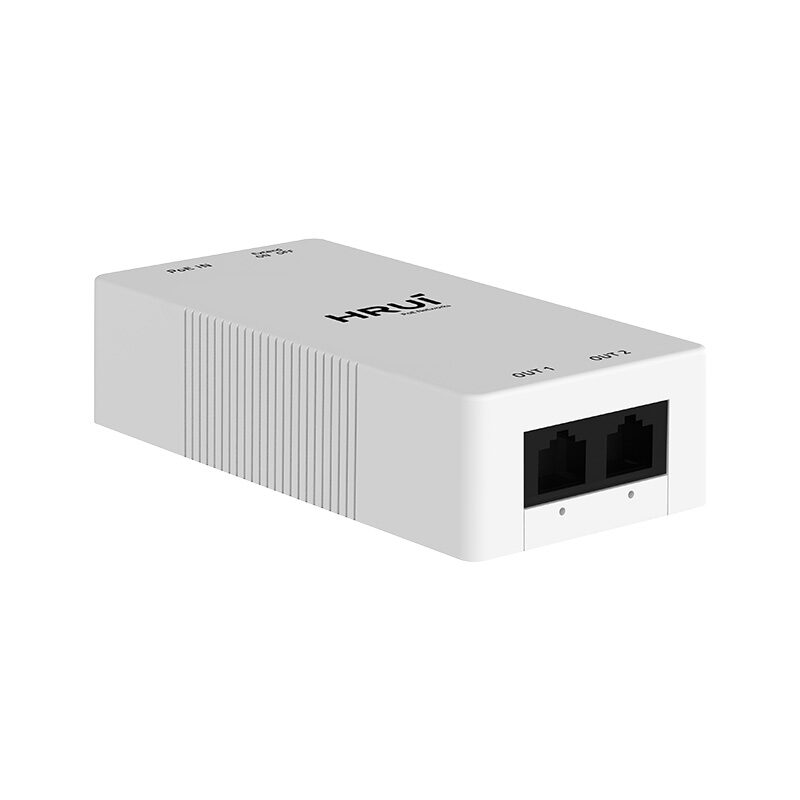

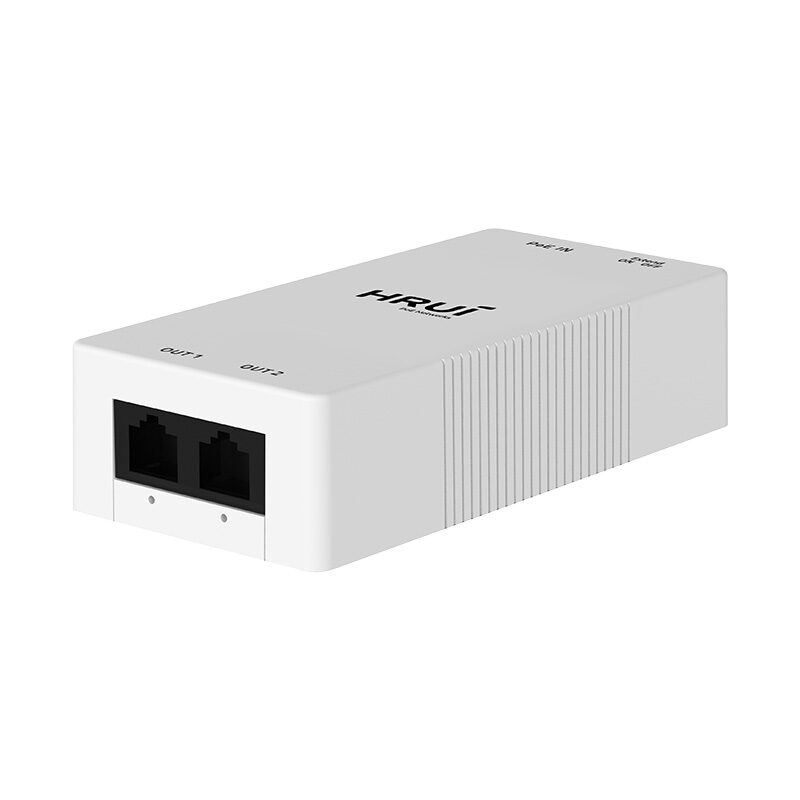

HR-AFR-21+

Interface

1* 100Mbps PoE in RJ45 port

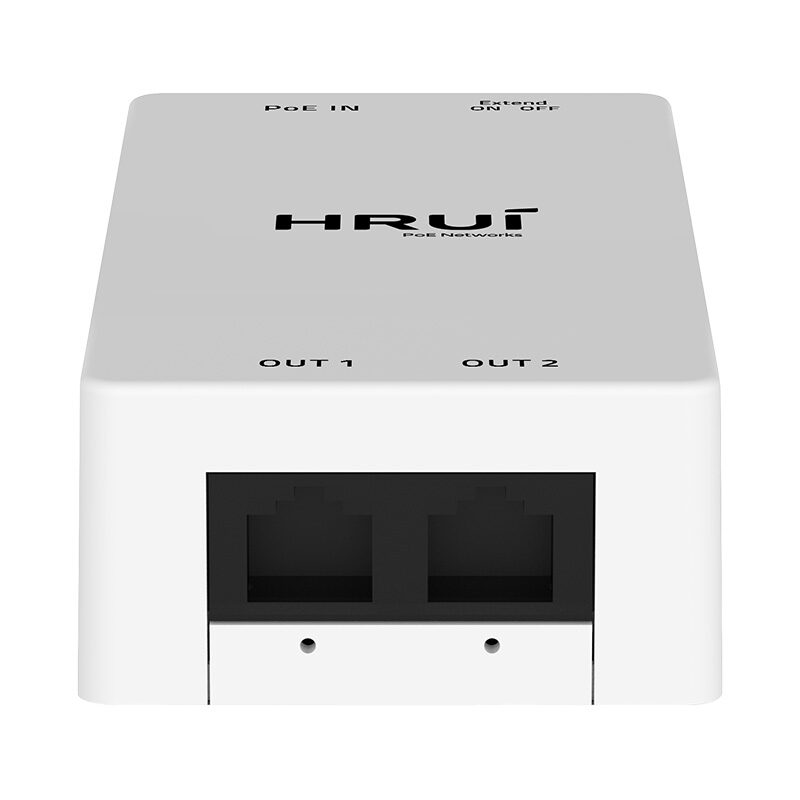

2 *100Mbps PoE out ports

Port Standard

IEEE802.3 (Ethernet)

IEEE802.3u (Fast Ethernet)

IEEE802.3x (Flow Control)

Switching Capacity

0.6Gbps

Packet Forwarding Rate

0.446Mpps

MAC Address Table

2K

Transmission Method

Store and Forward

PoE Standard

IEEE802.3af （15.4W）

IEEE802.3at （30W）

PoE Port Output Voltage

DC 44-57V

PoE Ports

Port PoE out <30W

PoE Power Budget

25W

Power Supply

PoE powered

Mainboard Power Consumption

0.96W

Structure Information

Product Dimensions :100*49*25mm

Packaging Dimensions : 102*50*27mm

Product Net Weight:0.060KG

Product Gross Weight:0.065KG

Packing Information

Carton Dimensions :425*295*275mm

Packing Quantity: 200PCS

Packing Weight: 14KG

Package Contents

PoE Extender 1pcs, manual 1pcs，certificate of qualification 1pcs

Fan Quantity

0

Installation

Desktop

Surge  Protection

Surge protection: common mode 4KV

Operating Temperature

0~40°C

Storage Temperature

-40 °C to 70 °C

Operation Humidity

10%~90%，non condensing

Storage Humidity

5%~95%，non condensing

Port Light

On: Link normal

Off: Link blocked

Blinking: Data transmitting

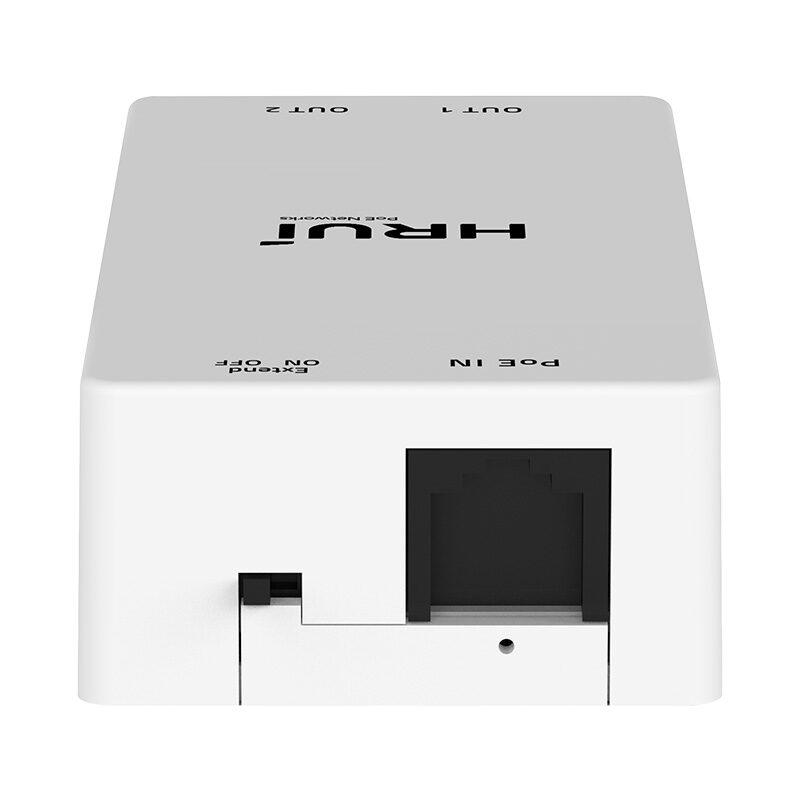

OFF/ON Modes Buttons

OFF: Link extension mode OFF

ON: Link extension mode, port PoE out and data transmission distance can be extended to 250 meters, transmission speed is 10Mbps
