Specifications |
|
I/O Interface |
|
Power |
AC 100-240V/50-60Hz |
Ethernet |
24*10/100/1000Mbps Ethernet Port |
4*10/100/1000Mbps SFP Port |
|
1*Console Port |
|
Performance |
|
Bandwidth |
56Gbps (non-blocking) |
Packet Forwarding rate |
41.66Mpps |
Packet Buffer |
4M |
Memory Capacity |
128MB |
Flash Capacity |
16MB |
MAC Address |
8K |
Jumbo Frame |
9.6Kbytes |
Transfer Mode |
Store and forward |
VLANs |
4096 |
Standard |
|
Network protocol |
IEEE802.3 (10Base-T) |
IEEE802.3u (100Base-TX) |
|
IEEE802.3ab (1000Base-TX) |
|
IEEE802.3z (1000Base-FX) |
|
IEEE 802.1q |
|
IEEE 802.1p(QoS) |
|
IEEE802.3x (Flow control) |
|
Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A |
EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT) |
|
Shock: IEC 60068-2-27 |
|
Free Fall: IEC 60068-2-32 |
|
Vibration: IEC 60068-2-6 |
|
Network Medium |
10Base-T : Cat3、4、5 or above UTP(≤100m) |
100Base-TX : Cat5 or above UTP(≤100m) |
|
1000Base-TX : Cat5 or above UTP(≤100m) |
|
optical characteristics |
multi mode:850/1310nm (0-2KM) |
Single mode:1310/1550/1490nm(0-120KM) |
|
Protection |
|
Security Certificae |
CE、FCC、RoHS |
Environment |
|
Working Environment |
Working Temperature:-20~50°C |
Storage Temperature:-40~80°C |
|
Working Humidity :10%~90%,non-condensing |
|
Storage Temperature:5%~90%,non-condensing |
|
Working Height:Maximum10,000 feet |
|
Storage heigh:Maximum 10,000 feet |
|
Indication |
|
LED Indicators |
PWR、SYS、Link、ACT |
Mechanical |
|
Structure Size |
Product Size:440*208*44.5mm |
Package Size:500*275*85mm |
|
Product Net-Weight:2.0kg |
|
Product Gross-Weight:2.6kg |
|
Packing Info |
MEAS:520*445*300MM |
Packing Qty:5PCS |
|
Packing weight:14 KG |
|
Power Voltage |
Input Voltage: AC 100-240 V |
Package List |
Switch: 1 set |
Instruction manual: 1 |
|
Certificate of conformity: 1 |
|
Warranty card: 1 |
|
AC power cord 1 |
|
A pair of hanging ears |
|
Software Function |
|
Port Management |
Enable/Disable Port |
Speed、Duplex、MTU Setting |
|
Flow-control |
|
Port Information Check |
|
Port Mirroring |
Supports both side-way port mirroring |
Port Speed Limit |
Supports port-based input / output bandwidth management |
Port Isolation |
Support the downlink port isolation, and can communicate with the uplink port |
Storm Suppression |
Supports unknown unicast, multicast, unknown multicast, |
broadcast type storm suppression |
|
Storm suppression based on bandwidth regulation and storm filtering |
|
Link Aggregation |
Support static manual aggregation |
Support LACP dynamic aggregation |
|
VLAN |
Access |
Trunk |
|
Hybrid |
|
Support port, protocol, MAC-based VLAN partitioning |
|
Support GVRP dynamic VLAN registration |
|
Voice VLAN |
|
MAC |
Support static addition, deletion |
MAC address learning limit |
|
Support dynamic aging time setting |
|
Spanning tree |
Support STP spanning tree protocol |
Supports RSTP Rapid Spanning Tree Protocol |
|
Supports MSTP Rapid Spanning Tree Protocol |
|
Multicast |
Support static addition, deletion |
IGMP-snooping |
|
Support MLD-Snooping |
|
Support v1/2/3 dynamic multicast monitor |
|
DDM |
Support SFP/SFP+DDM |
Extended Function |
|
ACL |
Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port |
Qos |
Based on 802.1p (COS) classification |
Based on DSCP classification |
|
Classification based on source IP, destination IP, and port number |
|
Support SP, WRR scheduling strategy |
|
Support flow rate limit CAR |
|
LLDP |
Support LLDP link discovery protocol |
User settings |
Add/delete users |
Log |
User login, operation, status, events |
Anti-attack |
DOS defense |
Support CPU protection and limits the rate of sending cpu packets |
|
ARP binding (IP, MAC, PORT binding) |
|
Certification |
Support 802.1x port authentication |
Support AAA certification |
|
Network diagnosis |
Support ping、telnet、trace |
System Management |
Device reset, configuration save/restore, upgrade management, time setting, etc. |
Management function |
|
CLI |
Support serial port command line management |
SSH |
Support SSHv1/2 remote management |
TELNET |
Support telnet remote management |
WEB |
Support Layer 2 settings, Layer 2 and Layer 3 monitor |
SNMP |
SNMP V1/V2/V3 |
Support trap:ColdStart、WarmStart、LinkDown、LinkUp |
|
RMON |
Support RMON v1 |
Other functions |
Support DHCP Snooping、DHCP Server、Option82 |
Support dynamic ARP detection |
|
Support TACACS+ certification |
|
Support DNS certification |
|
Support port security settings |
|
Support MVR protocol |
|
Support cable detection VCT function |
|
Support UDLD protocol |

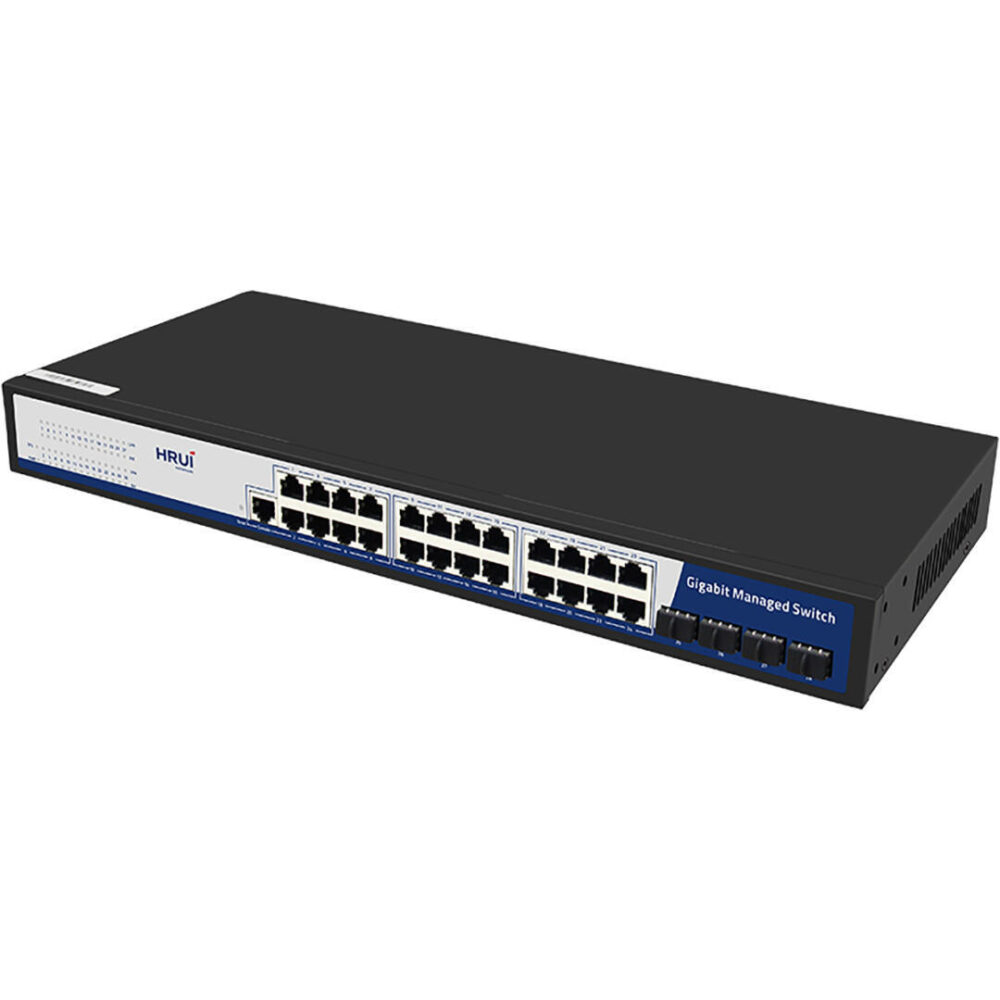

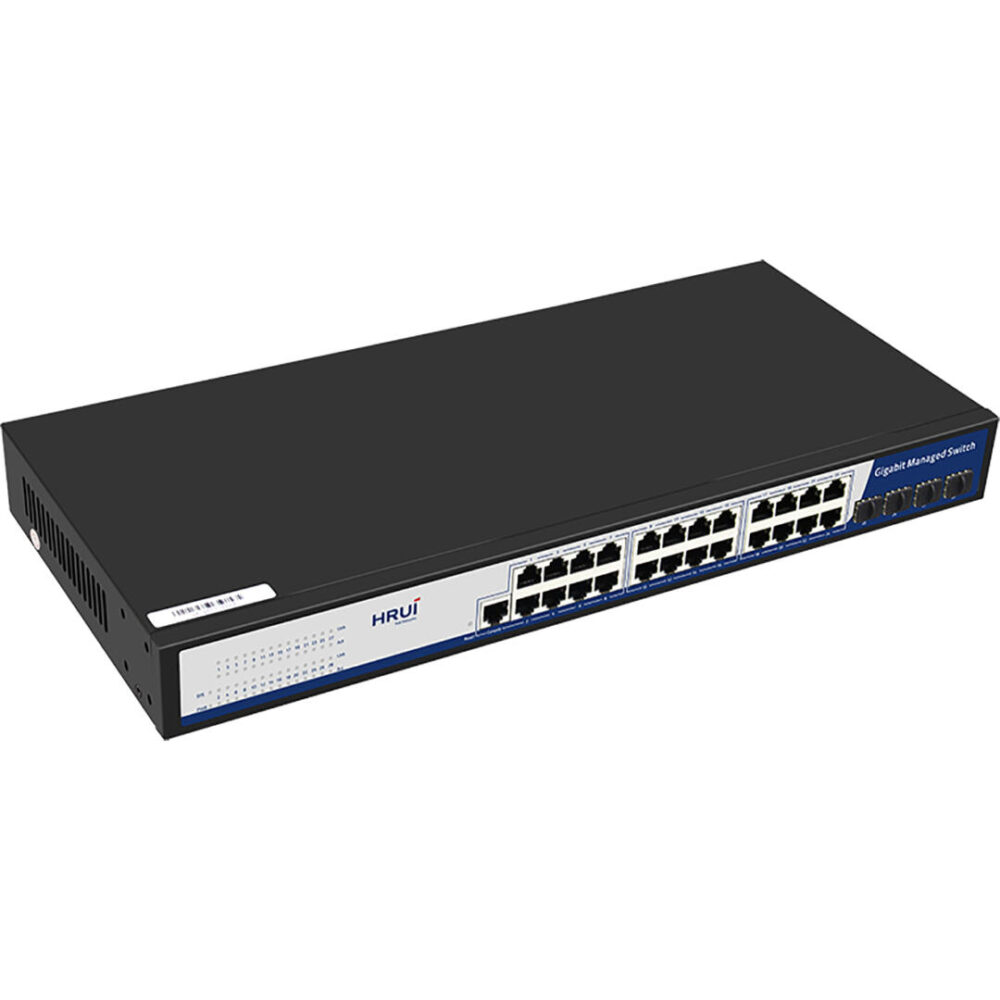

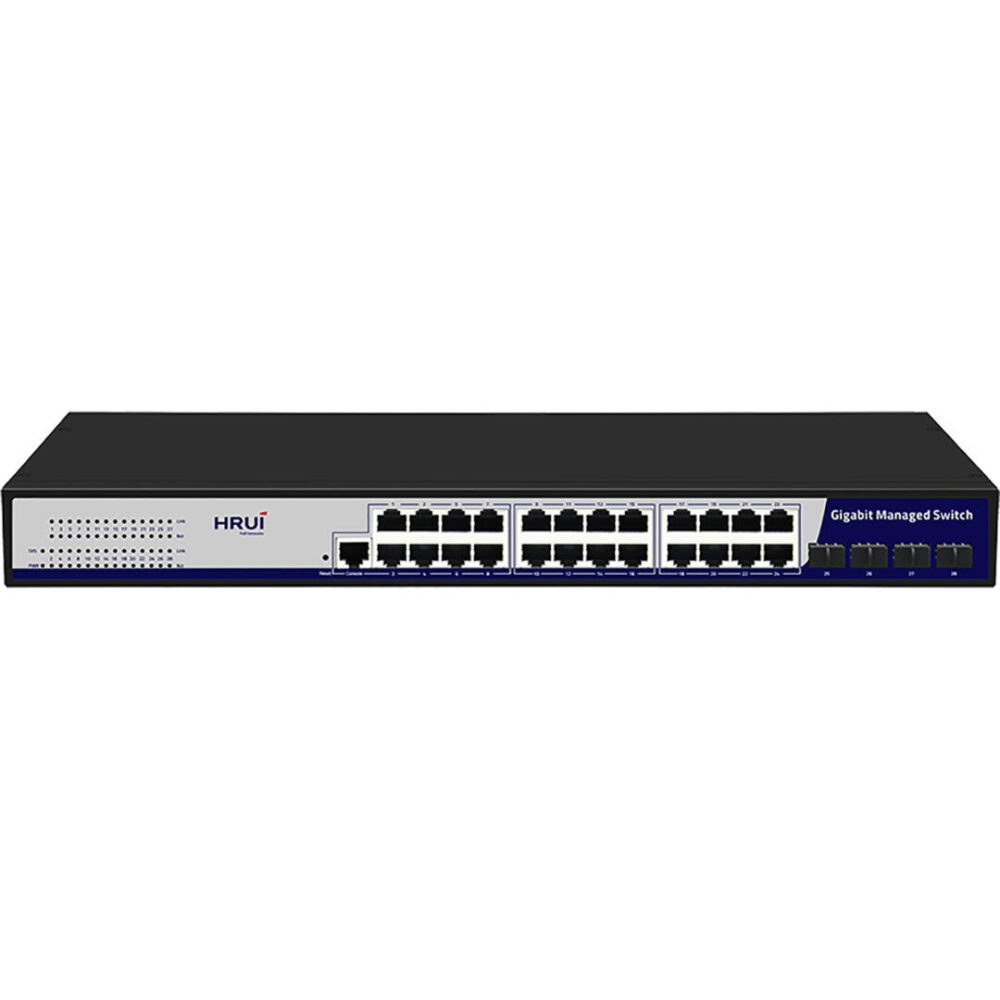

سوئیچ مدیریتی اترنت اچ ار یو ای HRUI HR-SWG20244S
– گیگ 24 پورت اترنت گیگ و 4 پورت Uplink SFP و 1 پورت کنسول
– سوئیچ مدیریتی لایه 2
– سوئیچ اترنت مدیریتی گیگ
– 30 ماه وارانتی بی قید و شرط
– ایران کد 2233120766280040
توضیحات تکمیلی
تعداد پورتها | 29 پورت |
---|---|
نوع پورتها | 1 پورت کنسول RJ45, 24 پورت RJ45, 4 پورت آپلینک SFP |
پروتکلهای شبکه | IEEE802.1p (Quality of Service Priority Tagging), IEEE802.1q (Virtual LANs and Frame Tagging), IEEE802.3 (Original Ethernet), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX، 100BASE-FX), IEEE802.3x (Flow control), IEEE802.3z (1000BASE-X) |
فیبر نوری | سینگل مود: ۱۳۱۰/۱۵۵۰ نانومتر، مسافت انتقال: ۲۰/۴۰/۶۰/۸۰/۱۰۰/۱۲۰ کیلومتر, مولتی مود: ۸۵۰/۱۳۱۰ نانومتر، مسافت انتقال: ۵۵۰ متر / ۲ کیلومتر |
پهنای باند سوئیچ | 56 گیگابیت بر ثانیه |
نرخ Packet Forwarding | 41.66 میلیون بسته در ثانیه |
ظرفیت حافظه | 128 مگابیت |
ظرفیت حافظه فلش | 16 مگابیت |
ظرفیت جدول مک آدرس | 8 هزار |
Jumbo Frame | 9.6 کیلوبایت |
میانگین زمان عملکرد بدون خرابی (MTBF) | 100000 ساعت (11 سال) |
ولتاژ ورودی | 100-240 ولت متناوب (AC) |
تخلیه الکترواستاتیک (ESD) | 8KV |
پالس الکتریکی گذرا (EFT) | 8KV |
محافظ صاعقه (Surge) | 6KV |
نشانگر LED | اتصال پورت (Link), وضعیت روشن بودن سوئیچ (Power) |
گواهینامهها | CE, FCC, RoHS |
محدوده دمای توصیه شده سوئیچ | از منفی 20 تا مثبت 50 درجه سانتیگراد |
محدوده رطوبت قابل تحمل سوئیچ | از 10 تا 90 درصد (رطوبت غیرمتراکم) |
حداکثر ارتفاع مجاز نصب (ارتفاع از سطح دریا) | ۳۰۰۰ متر از سطح زمین |
ابعاد سوئیچ | 44.5×208×440 میلیمتر |
وزن سوئیچ | 2000 گرم |
دانلود
دانلود دیتاشیت | HRUI HR-SWG20244S |
دانلود راهنمای رابط خط فرمان (CLI) سوئیچ مدیریتی | Managed-CLI-UserGuide_V1.1.pdf |
