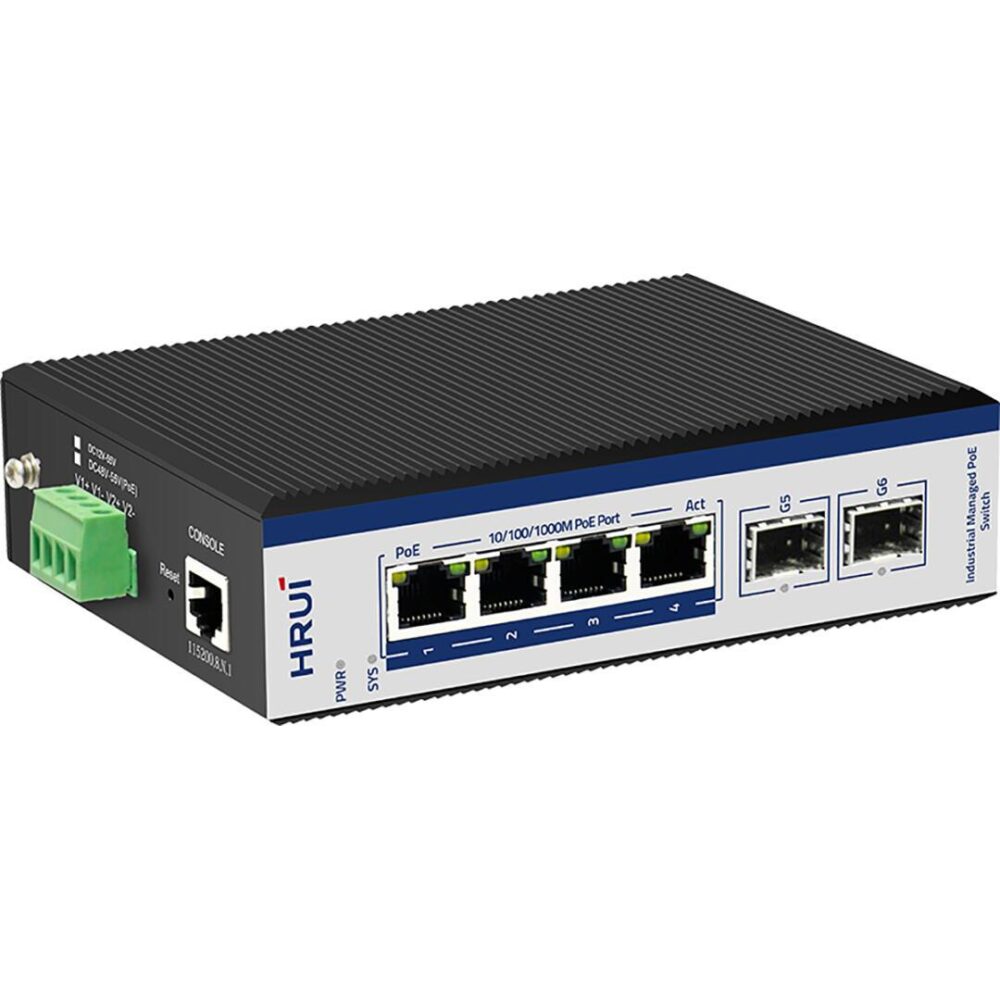

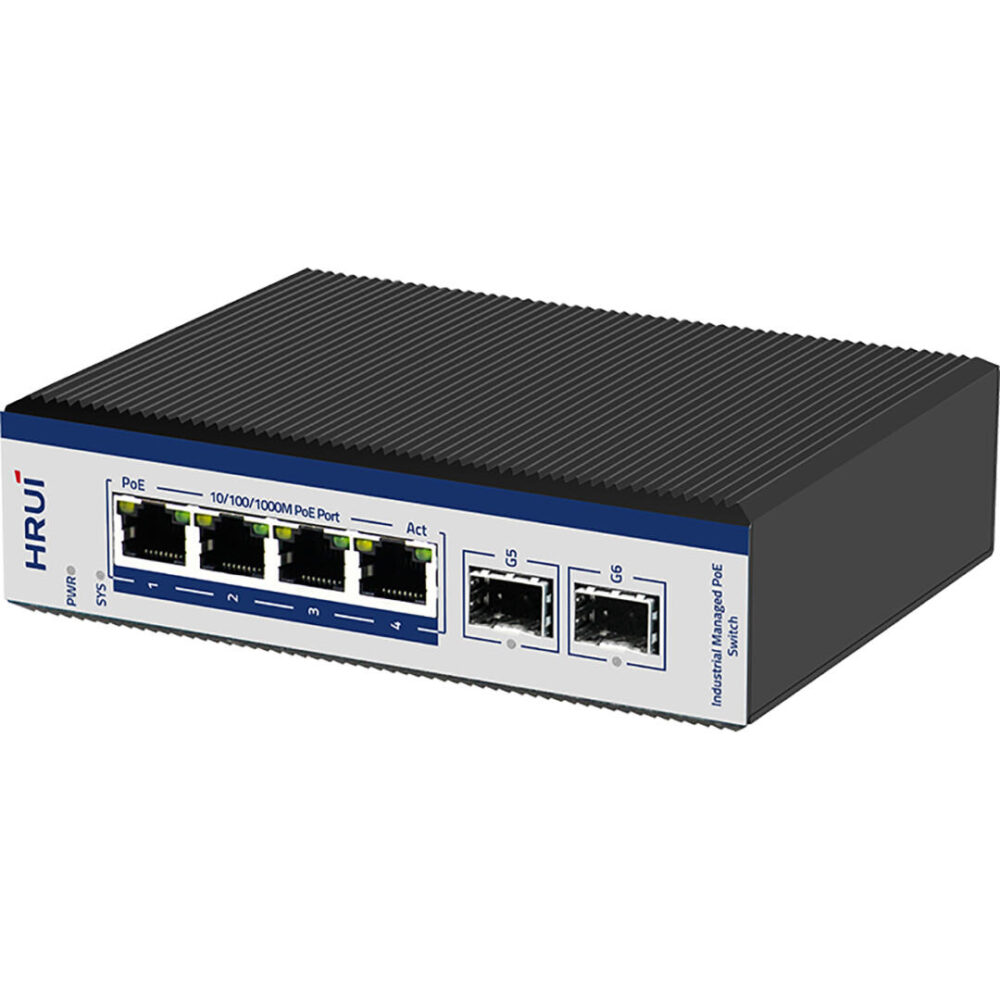

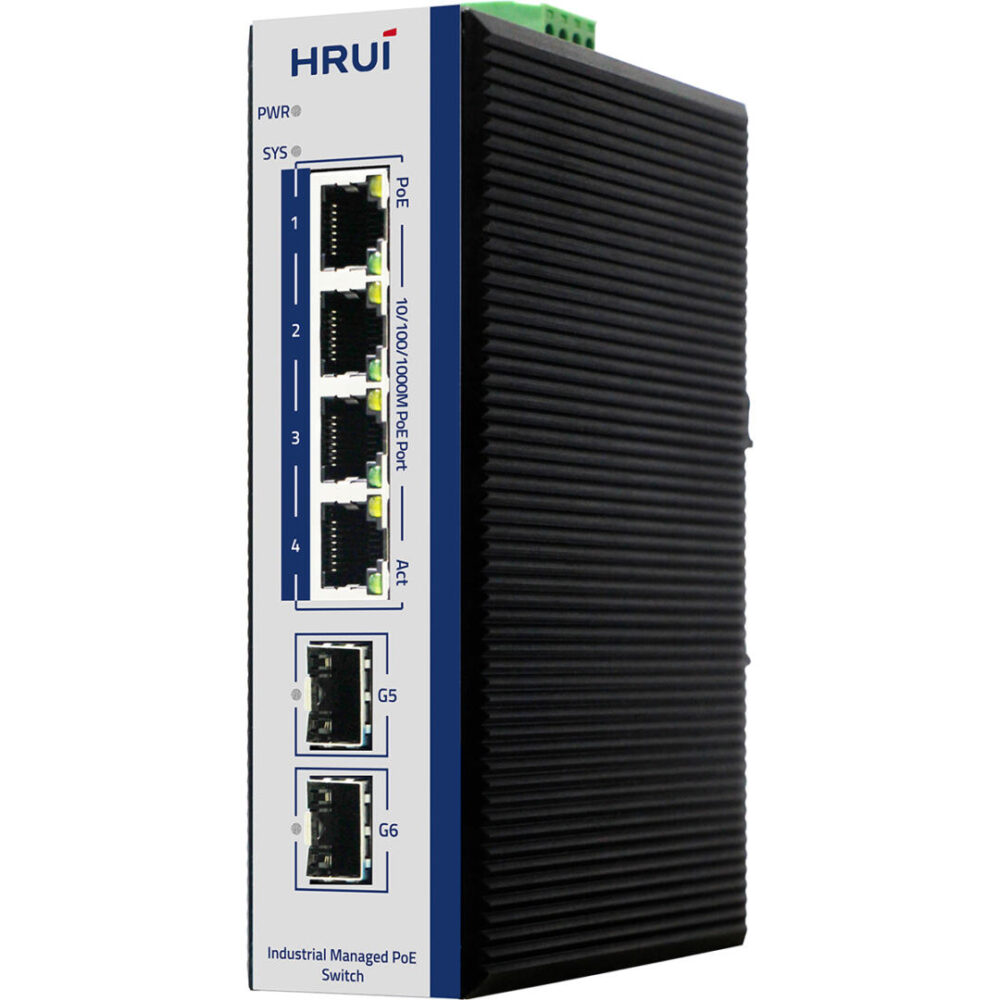

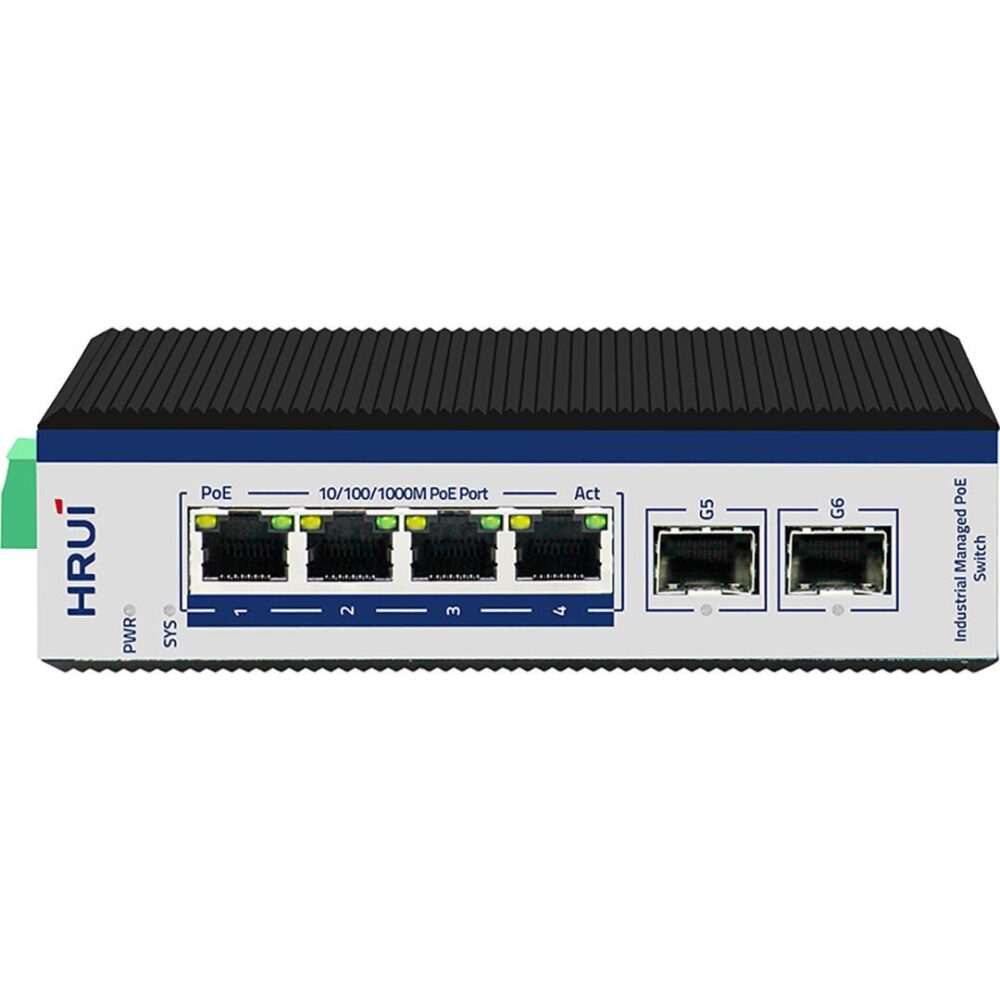

سوئیچ مدیریتی گیگ PoE صنعتی اچ ار یو ای HRUI HR600-AFGM-42S

– سوئیچ 4 پورت PoE گیگ و 2 پورت Uplink SFP و 1 پورت کنسول
– سوئیچ صنعتی مدیریتی گیگ PoE
– 48 ماه وارانتی بی قید و شرط

Specification

Product Name

6 Ports Gigabit Managed Industrial PoE Switch

Product Model

HR600-AFGM-42S

Port Definition

4 Gigabit PoE Ports + 2 Gigabit SFP Port + 1 Console port

Network Protocols

IEEE802.3

IEEE802.3u

IEEE802.3z

IEEE802.3ab

IEEE802.3x

IEEE802.1d

IEEE802.1w

PoE Parameters

PoE Standard: IEEE802.3af /IEEE802.3at

Single PoE Port Power Output:

Max: 15.4 W (IEEE 802.3af)

Max: 30 W (IEEE 802.3at)

PoE Compatibility: IEEE 802.3af/at adaptive

PoE Power Output: DC 48-55V

PoE Power Pin: 1/2- ; 3/6+

Network Media

10BASE-T: Cat3, 4, 5 UTP(≤100 M)

100BASE-TX: Cat5 or above UTP(≤100 M)

1000BASE-TX: Cat5 or above UTP(≤100 M)

Fiber Media

Multi-mode: 850nm, 1310nm   Transmission Distance:  550m/2Km

Single-mode: 1310nm, 1550nm  Transmission Distance:  20/40/60/80/100/120Km

LED Indicator

PWR

Lighting: Powered

Un-Light: No Power

SYS

Lighting: System is operating normally

Un-Light: System is not running

Yellow light

Lighting: PoE Powered

Un-Light: No PoE Powered

Green light

Slow Flashing: 10/100/1000 Link normally

Un-Light: Link disconnect

Flashing: Link data transmission

G5-G6

Lighting: Fiber Connection is Normal

Un-Light: Disconnect

Flashing: Link data transmission

Power Supply

Input Voltage: DC 4855V

Type of input: 4 PIN Industrial Terminal(block V1+V1- V2+ V2-)

Physical structure

Protect grade: IP40

Installation: DIN Rail

Product weight: 0.6KG  Package weight : 0.8 KG(Without power)

Product Dimensions (L×W×H): 145mm×125mm×40mm

Package Dimensions (L×W×H): 245mm×190mm×60mm

Standard packing(L×W×H): 505mm× 320 mm× 400mm

Standard packing quantity: 20 (PCS)

Working Environment

Operating temperature: -4085℃

Storage temperature: -4085℃

Humidity: 5%~95 % ( No condensation)

Industry Standard

EMI: FCC Part 15,  CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD)

EN61000-4-4 (EFT)

EN61000-4-5 (Surge)

Certification

CE ,  FCC ,  ROHS

MTBF

100, 000 hours

Packing list

1. Industrial grade switch: 1 Set

2. Instruction manual: 1 PCS

3. Certificate,  warranty card: 1 PCS

4. Serial cable: 1PCS

5. Operation manual CD: 1 PCS

Warranty

5 years

Hardware Parameters

Bandwidth

12Gbps

Packet Forwarding Rate

8.928Mpps

Packet Buffer Memory

4M

RAM

128MB

Flash

16MB

VLANs

4096

MAC

8K

Jumbo frame

9.6Kbytes

Forwarding Mode

Store-And-Forward

Software Function

Menu Items

Submenus

Secondary Submenus

Triple Submenus

Information & Status

System Information





IP Status





Syslog





Detailed Syslog





MAC Table





VLANs

Membership



Ports



Ports

Traffic Overview



Detailed Statistics



LACP

System Status



Port Status



Port Statistics



Green Ethernet





LLDP

Neighbors



Port Statistics



Loop Protection





Spanning Tree

Bridge Status



Port Status



Port Statistics



IGMP Snooping

Status



Groups Information



IPv4 SFM Information



MLD Snooping

Status



Groups Information



IPv6 SFM Information



DHCP

Server

Statistics

Binding

Declined IP

Snooping Table



Relay Statistics



Detailed Statistics



Security

Port Security

Switch

Port

Access Management Statistics



802.1X

Switch

Port

ACL Status



AAA

RADIUS Overview

RADIUS Details

QoS

QoS Statistics



QCL Status



Network Admin

IP Config





IP Status





DHCPServer

Mode



Excluded IP



Pool



NTP





Timezone





SNMP

System



Trap



Communities



Users



Groups



Views



Access



Syslog





Port Configure

Ports





Aggregation

Static



LACP



Mirroring





Green Ethernet





DDM

DDM Configuration



DDM Overview



DDM Detailed



PoE

PoE Setting





PoE Status





Advanced Configure

MAC Table





VLANs





GVRP

Global config



Port config



Port Isolation

Port Group



Port Isolation



Loop Protection





Spanning Tree

Bridge Setting



MSTI Mapping



MSTI Priorities



CIST Ports



MSTI Ports



IPMC Profile

Profile Table



Address Entry



MEP





ERPS





IGMP Snooping

Basic Configuration



VLAN Configuration



Port Filtering Profile



IPV6 MLD Snooping

Basic Configuration



VLAN Configuration



Port Filtering Profile



LLDP





Security Configure

Users





Privilege Levels





SSH





Port Security Limit





Access Management





802.1X





ACL

Ports



Rate Limiters



Access Control List



DHCP

Snooping Setting



Snooping Table



Relay



Relay Statistics



Detailed Statistics



IP&MAC Source Guard

Configuration



Static Table



Dynamic Table



ARP Inspection

Port Configuration



VLAN Configuration



Static Table



Dynamic Table



AAA

RADIUS



TACACS+



QoS Configure

Port Classification





Port Policing





Queue Policing





Port Scheduler





Port Shaping





Port Tag Remarking





Port DSCP





DSCP-Based QoS





DSCP Translation





DSCP Classification





QoS Control List





Storm Policing





Diagnostics

Ping





Cable Diagnostics





CPU Load





Maintenance

Restart Device





Factory Defaults





Firmware Upgrade





Firmware Select





Configuration

Download



Upload



Activate



Delete
