Product Name

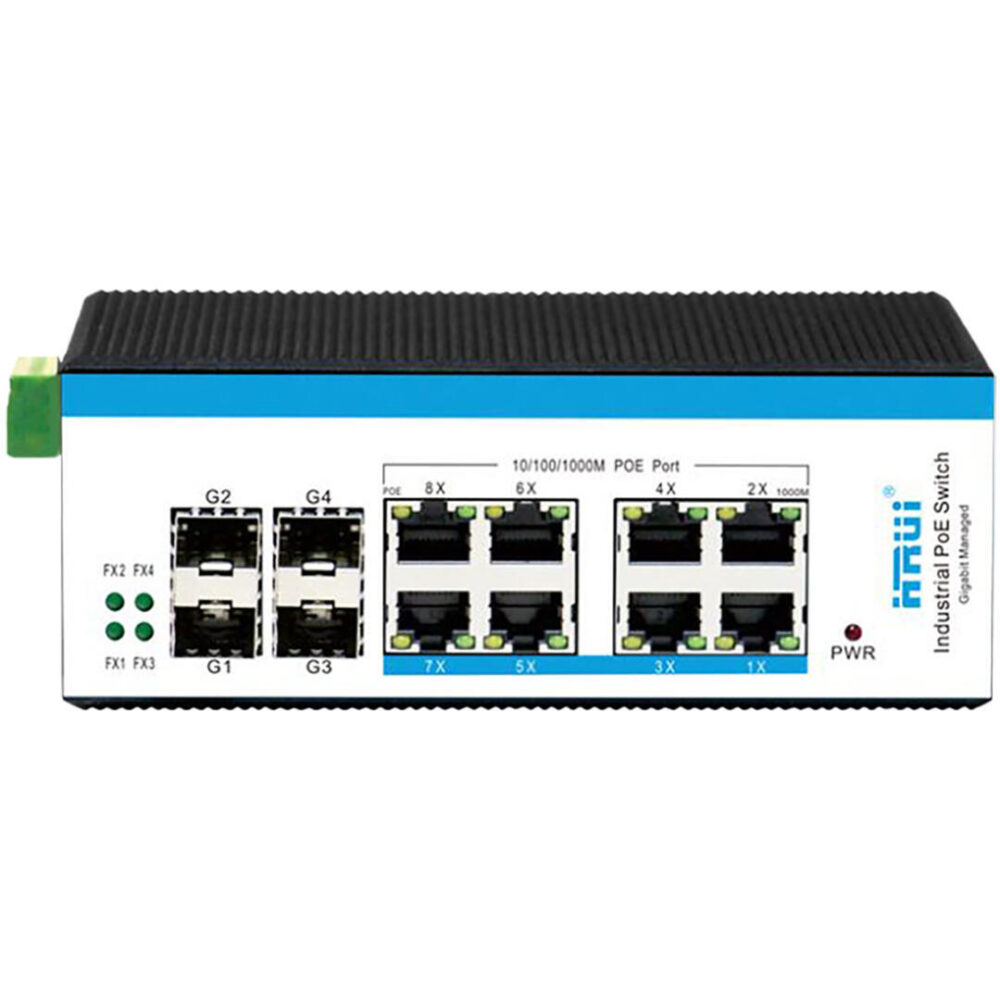

12 ports Gigabit Managed Industrial PoE Switch

Product Model

HR600-AFGM–84S

Interface

8x 10/100/1000M copper RJ–45 ports,4x 1000M SFP port ,1* console

  Network Protocols

L2 ( Layer 2 Switching )

  Port management

Enable / disable port

  Speed, duplex, MTU settings, etc. Flow–control flow control setup Port information view, etc.

Support port access direction, VLAN image

  To support the port speed limit, Support port isolation settings

Unknown unicast, multicast, broadcast storm suppression

  Spanning Tree Protocol

  Standard Spanning Tree (STP) 802.1d Rapid Spanning Tree (RSTP) 802.1w Multiple   Spanning Tree (MSTP) 802.1s

  Link Aggregation

  Support static manual aggregation

  VLAN

Support up to 4K VLANs simultaneously (out of 4096 VLAN IDs) ;

  Support Port based VLAN and IEEE 802.1Q VLAN

  IGMP snooping

  Support static add / delete,

GMRP

supports GARP multicast registration protocol

  MAC

Support static add / delete

  MAC address learning limit

  Support dynamic aging time settings

Extended   function

  ACL

based on the source MAC, destination MAC, protocol type, source IP, destination IP, L4 port number

Support time-range time management

  QOS

based on 802.1p (COS) classification

  Based on DSCP classification

  Based on the source IP, destination IP, port number classification

  Support SP, WRR, DRR scheduling strategy

  Support traffic speed limit CAR

LLDP

supports LLDP link discovery protocol

  Prevent attack

DOS defense

  Support for CPU protection, limited to send CPU message rate

  ARP binding (IP, MAC, PORT binding)

system management

User add / delete user

  User login, operation, status, event log

Device reset, configuration save / restore, upgrade management, time setting, etc.

management   function

CLI

support serial command line management

TELNET

support serial command line management

WEB

supports two layers, three layers of view, etc.

Other parameters

  PoE Specification

PoE Standard: Supports both IEEE802.3af and IEEE802.3at

Single PoE Port Power Output: Max. 15.4 watts (IEEE 802.3af)

Max. 30 watts (IEEE 802.3at)

PoE port Auto detect AF/AT devices

PoE Port Output Voltage: DC48V

Power Pin Assignment:1/2+;3/6–

  Network Media

  10BASE-T: Cat3,4,5 UTP(≤100 meter)

  100BASE-TX: Cat5 or later UTP(≤100 meter)

  1000BASE-TX: Cat6 or later UTP(≤100 meter)

  Fiber Media

Multi–mode: 1310nm, 2Km

  Single–mode: 1310nm, 20;   1550nm, 40/60/80Km

  Performance Specification

Bandwidth: 24Gbps

  Packet Buffer Memory:2M

  Packet Forwarding Rate:1488000pps/port

Address Table: 8K

MTBF:100,000 Hours

Forwarding Mode

  Store-And–Forward

  LED Display

Fiber Run indicator: FX1,FX2,FX3,FX4

  Power supply indicator: PWR

  PoE ACT indicator: LED-Yellow

1000M LINK indicator: LED-Green

  Power Supply

Input Voltage: DC48V (48～55V)

  Type of input: 6 bits terminal block

  No–load consumption: MAX 10W@ DC52V0.2A

Full–load consumption: MAX 104W@ DC52V2A (802.3af)

Full–load consumption: MAX 130W@ DC52V2.5A (802.3af+)

Full–load consumption: MAX 240W@ DC52V4.6A (802.3at)

  Working Environment

Working temperature: –40～85℃

Storage temperature: –40～85℃

  Relative Humidity: 5%~95 %( no condensation)

  Industry Standard

EMI: FCC Part 15, CISPR (EN55022) class A

  EMS: EN61000–4-2 (ESD)

  EN61000–4-4 (EFT) EN61000–4-5 (Surge) Shock: IEC 60068–2–27

Free fall: IEC 60068–2–32

  Vibration: IEC 60068–2-6

  Mechanical Structure

Shell: IP40 protect grade, metal shell

  Installation: DIN-Rail or Wall mounts

  Certification

  CE mark, commercial FCC Part 15 Class B VCCI Class B

EN 55022 (CISPR 22), Class B

Warranty

5 years
