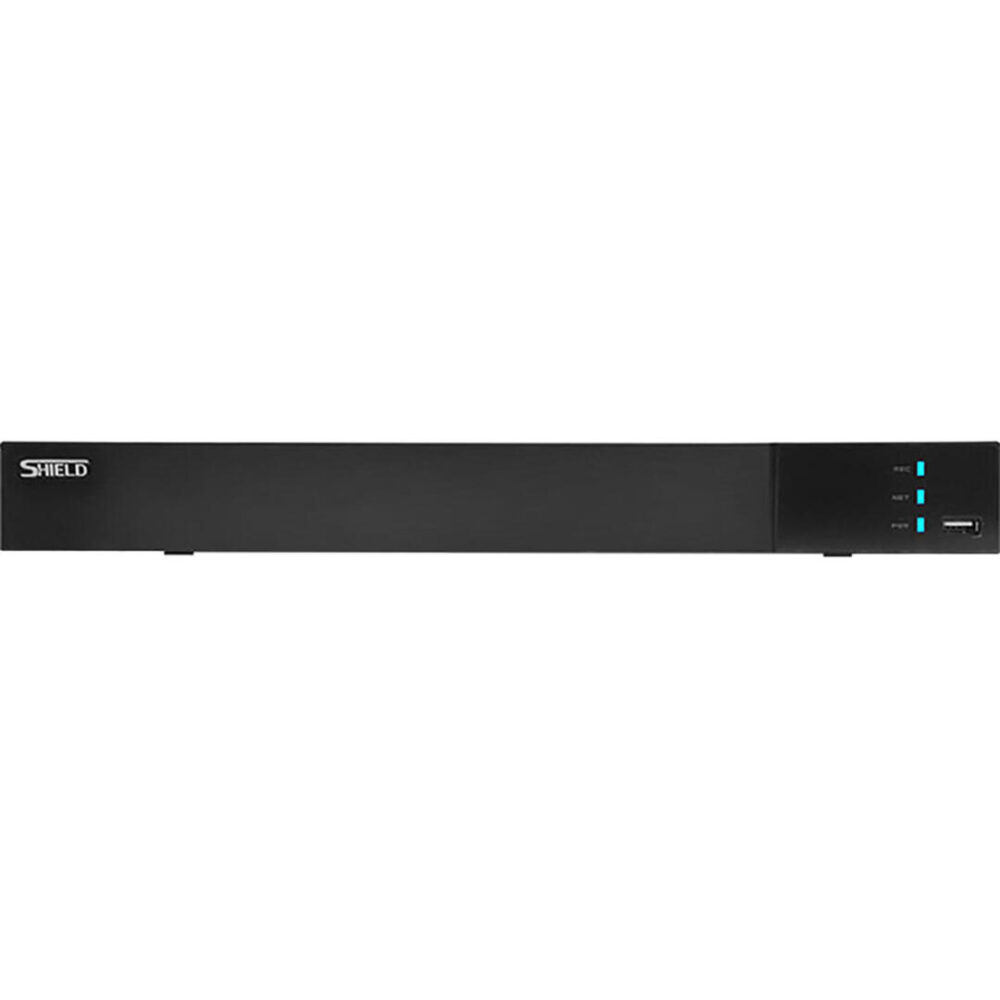

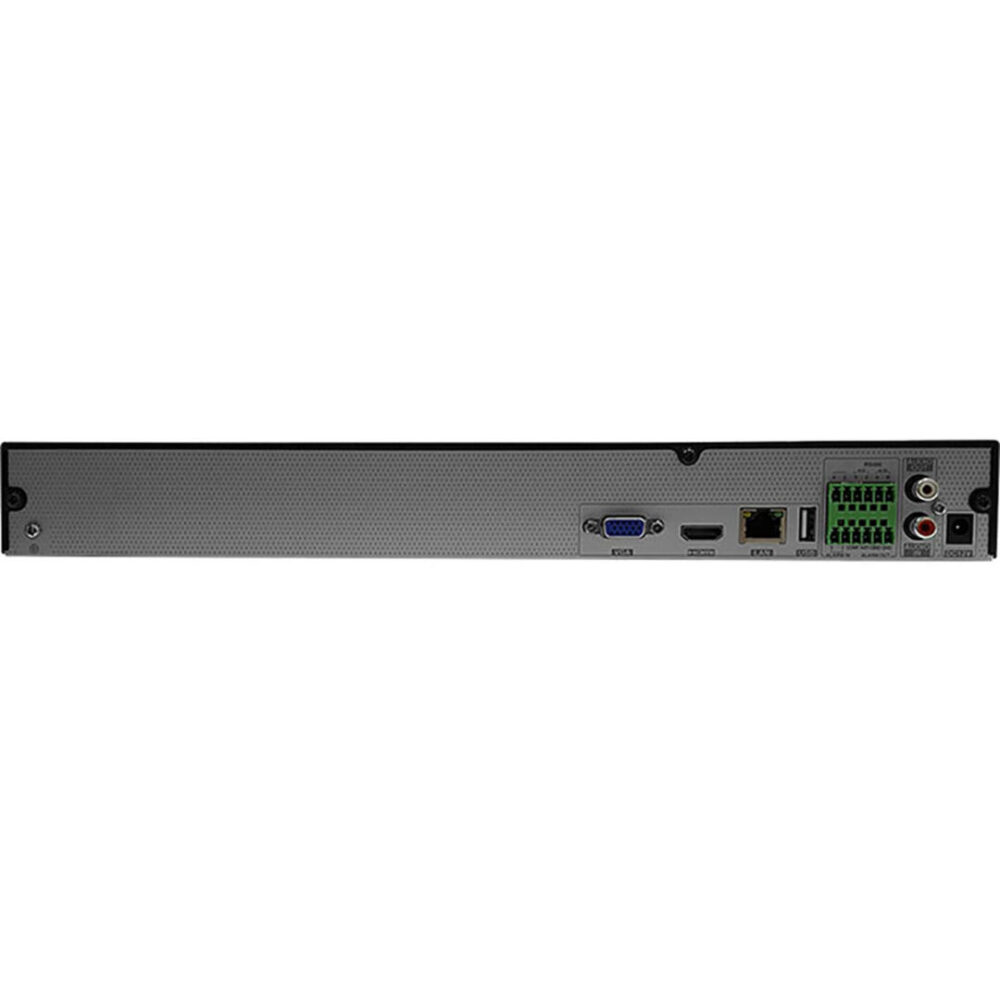

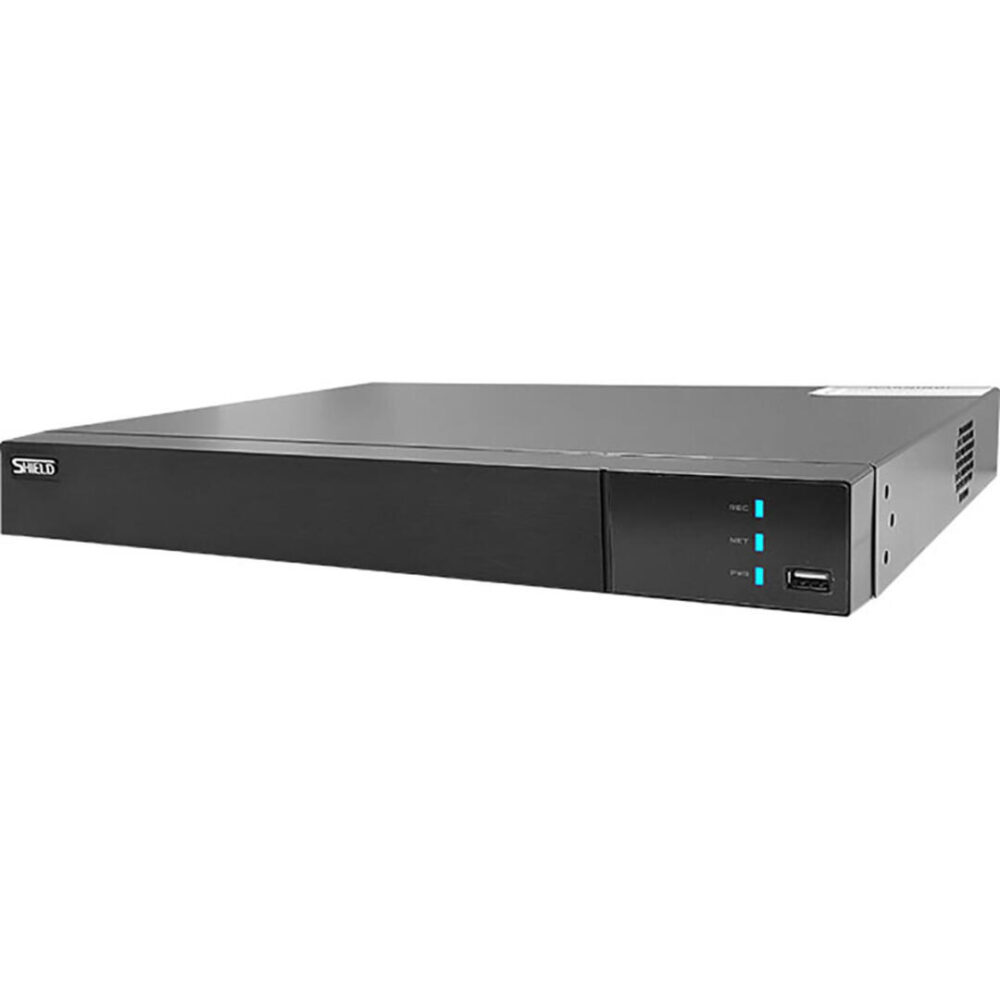

دستگاه ضبط تحت شبکه NVR شیلد Shield SL-N7332W-8MP/4K

Model		SL-N7332W-8MP/4K
System	Compression	Standard H.265
	Main Processing Chip	ARM Cortex A7
	OS	Embedded Linux
Video	Network Access Bandwidth	112Mbps
	Input Resolution	8MP、5MP、4MP、3MP、1080P、960P、720P real time
	Network Access	16 CH IPC input
	Output	HDMI×1：3840×2160/1920×1080/1280×1024/1024×768 VGA×1：1920×1080/1280×1024/1024×768
Audio	Input	16 CH IPC audio input
	2-way Audio	RCA×1
	Local Output	RCA×1
Record	Resolution	8MP、5MP、4MP、3MP、1080P、960P、720P
	Frame Rate	25fps/30fps(PAL/NTSC）
	Bite Stream	32Kbps-10Mbps
	Image Quality	5 Level
Playback	Simultaneous Playback	Max 16 CH
Network	Interface	RJ45 10/100/1000 Mbps × 1
Network	Network Protocol	TCP/IP、PPPoE、DHCP、DNS、DDNS、UPnP、NTP、SMTP、ONVIF、GB28181
Storage	HDD	SATA×2
Storage	Max Capacity for 1 single HDD	6T
Backup	USB Backup	Yes
Backup	eSata Backup	No
Interface	Alarm In	4
	Alarm Output	1
	Communication	RS485×2, connect to PTZ and keyboard
	Remote	Optional
	USB	USB2.0×2 (one in the front panel and the other in the rear panel)
Others	Case	1U
	Dimensions(mm )	380×268×52(W×D×H )
	Power Supply	DC12V
	Consumption	≤ 15W ( without HDD )
	Work Environment	-10 ～ 50 ℃，10% ～ 90% humidity
