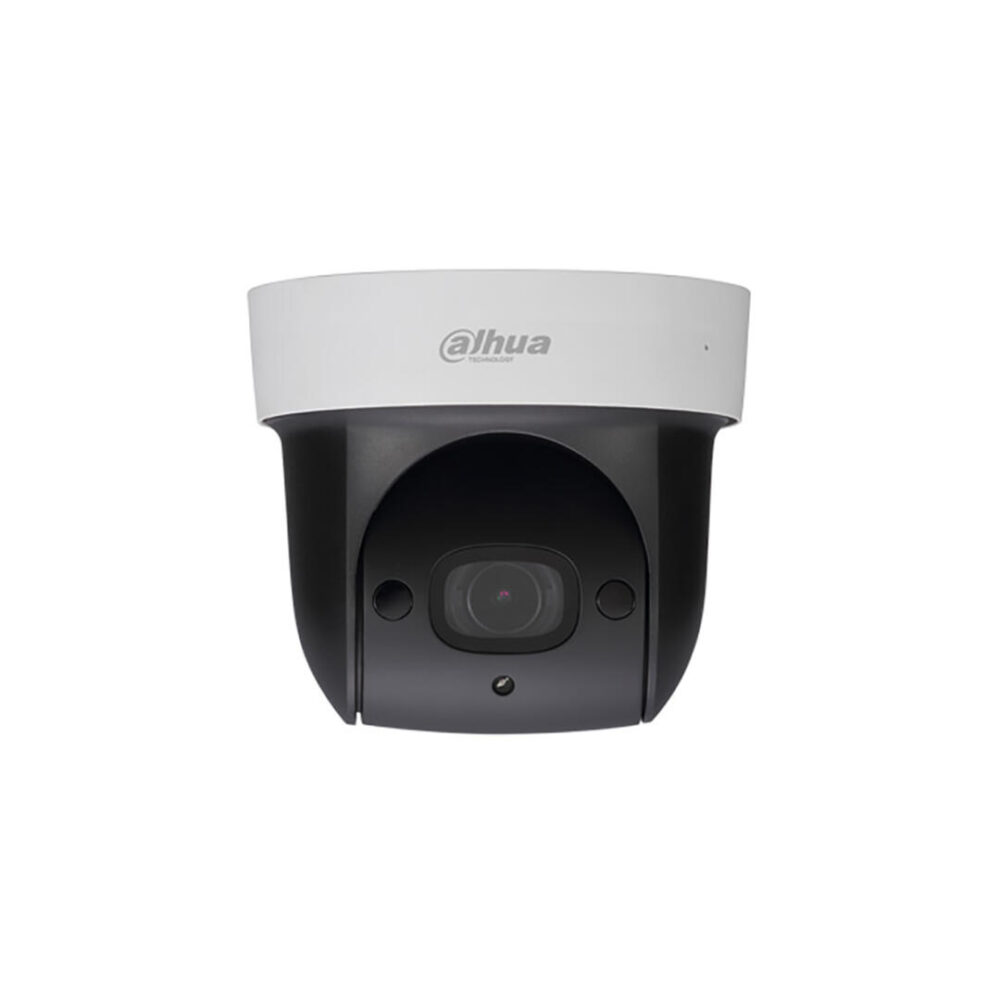

دوربین مداربسته داهوا DH-SD29204T-GN

– دوربین مداربسته اسپید دام تحت شبکه سری ptz داهوا
– دوربین چرخشی با قدرت بزرگ نمایی تصویر تا 4 برابر (اپتیکال)
– فرمت مورد استفاده H.264+ / H.264 & MJPEG triple-stream encoding
– کیفیت تصویر 25/30fps@1080P(1920×1080) & 50/60fps@720P
– دارای قابلیت Auto Iris, Auto Focus
– دارای قابلیت WDR(120dB),Day/Night(ICR),3DNR,AWB,AGC,BLC
– دارای حالت های Max 240°/s pan speed, 360° endless pan rotation
– پشتیبانی از Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
– به همراه میکروفون تعبیه شده داخلی

Camera

Image Sensor

1/2.7” CMOS

Effective Pixels

1920(H) x 1080(V), 2 Megapixels

RAM/ROM

256M/128M

Scanning System

Progressive

Electronic Shutter Speed

1/1s~1/30,000s

Minimum Illumination

Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m (98ft)

IR On/Off Control

Auto/Manual

IR LEDs

2

Lens

Focal Length

2.7mm~11mm

Max. Aperture

F1.6

Angle of View

H: 112.5° ~ 30°

Optical Zoom

4x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Detect

Observe

Recognize

Identify

120m(394ft)

48m(157ft)

24m(79ft)

12m(39ft)

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° limited; Tilt: 0° ~ 90°

Manual Control Speed

Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s

Preset Speed

Pan: 100° /s; Tilt: 60° /s

Presets

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan ,Auto Scan

Speed Setup

Human-oriented focal Length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Protocol

DH-SD

Intelligence

Event Trigger

Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly

Auto Tracking

N/A

IVS

Tripwire, Intrusion,Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video

Compression

H.264+/H.264/MJPEG

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main stream: 1080P/720P/D1 (1 ~ 25/30fps)

Sub stream1: D1/CIF(1 ~ 25/30fps)

Sub stream2: 720P/D1/CIF (1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264+/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR (120dB)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Motion Detection

Support

Region of Interest

support

Electronic Image Stabilization (EIS)

N/A

Defog

Support

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas

Audio

Compression

G.711a/G.711u(32kbps)/PCM(128kbps)

Network

Ethernet

RJ-45 (10XBase-T/100Base-TX)

Wifi

N/A

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

20 users

Edge Storage

NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface

Video Interface

N/A

RS485

N/A

Audio I/O

Built-in Mic

Alarm I/O

N/A

Electrical

Power Supply

DC 12V/1.5A, PoE(802.3af)

Power Consumption

10W,13W (IR on)

Environmental

Operating Conditions

-30°C ~ 60°C (-22°F ~ +140°F) / Less than 90% RH

Ingress Protection

N/A

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

Φ132.7 (mm) x 117.9 (mm)

Net Weight

0.95kg(2.09lb)

Gross Weight

1kg(2.20lb)
