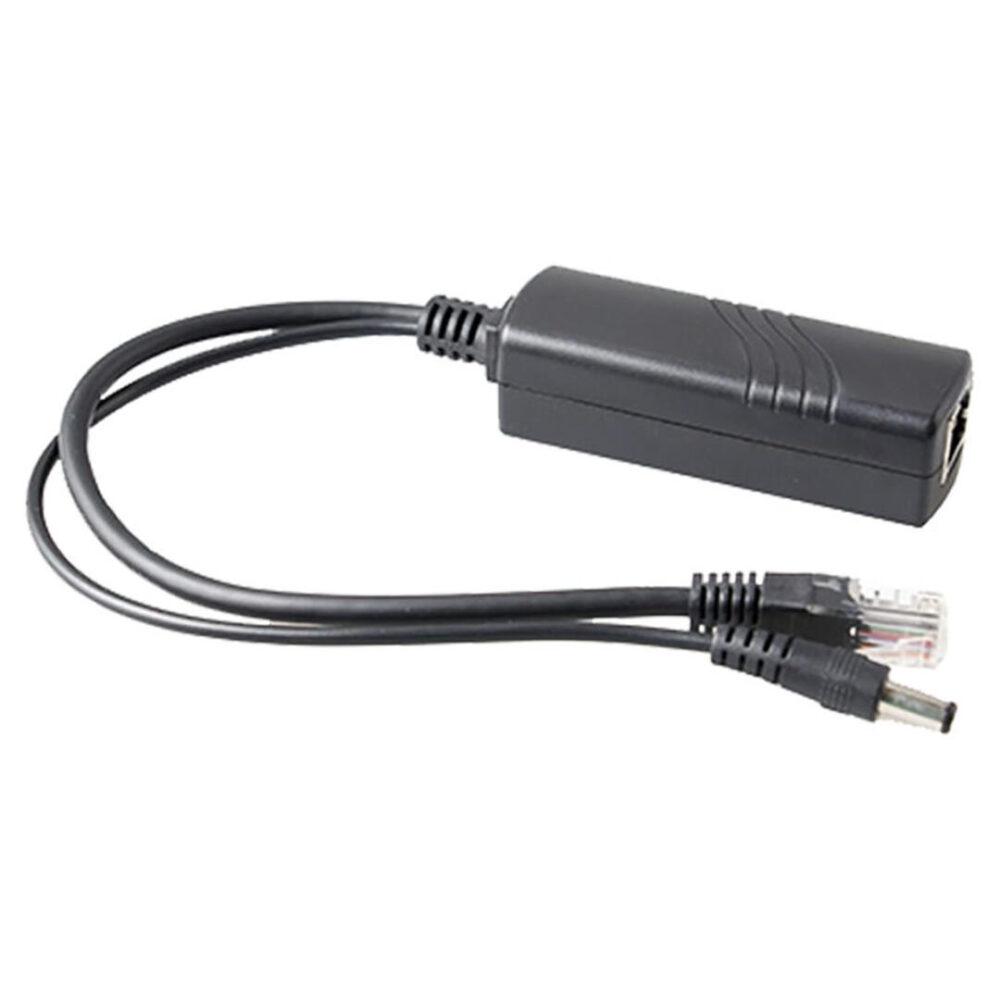

| Product Name | 100M 25W Single Port PoE splitter |
| Product Model | HR-AT-PD12D |
| Connector Type | 1x 10/100M copper cable RJ45 ports |
| PoE Power Supply Type | PoE power supply is 4 line pairs of twisted pair, the positive power supply side is 1/2 or 4/5 line pair, the negative power supply side is 3/6 or 7/8 line pair |
| Performance Specifications | Output: DC 12V by default |
| Input voltage: 38-56V | |
| Working Speed:10/100Mbps | |
| MTBF: 190,000 hours (about 21 years) | |
| Network Protocols and Standards | IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI |
| IEEE802.3af / IEEE802.3at standard | |
| LEDs Indicator | PoE working status |
| Dimension | LxWxH: 90x32x28mm+210mm(line) |
| Weight | 63g |
| Poe Standard | IEEE802.3af/at |
| Power | PoE Port Output Power:25W |
| Working Environment | Working Temperature: -30°～ 80°C, Storage Temperature: -30°～ 100°C, |
| Working Humidity: 10%～90%, non-condensing, Storage humidity:10%～95%,non-condensing |
